DOSAPLUS 4 DG - PROPORTIONAL POLYPHOSPHATE POWDER DISPENSER 1/2" CONNECTOR - ATLAS FILTRI ANTI-LIMESCALE SYSTEM

DOSAPLUS 4 DG - PROPORTIONAL DISPENSER FOR POLYPHOSPHATES IN POWDER ATT. 1/2" - ATLAS FILTRI ANTI-LIMESCALE SYSTEM
Item Code: RE4050214

ATLAS DOSAPLUS 4 DG - READY-TO-USE PROPORTIONAL POLYPHOSPHATE POWDER DISPENSER FOR DRINKING WATER COMPLIANT WITH MINISTERIAL DECREE 25.

Dosaplus 4 DG is a ready-to-use proportional polyphosphate powder dispenser for the anti-limescale and anti-corrosion treatment of neutral pH water and drinking water for domestic and industrial installations.

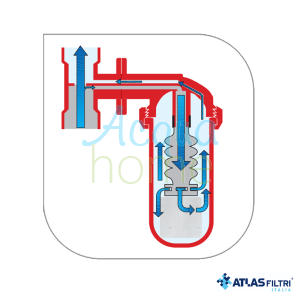

Through the automatic and proportional dosing of the ready-to-use Poliphos A anti-limescale and anti-corrosion product, Dosaplus proportional dispensers release polyphosphates that prevent the deposits of calcium and magnesium carbonate, forming a protective film around them to prevent scale buildup.

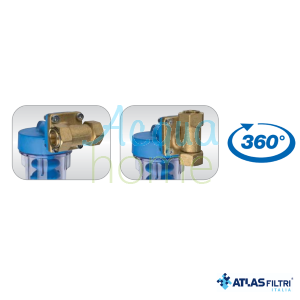

Used for "point-of-use" use, with a plastic head and rotational connection assembly 360° brass fitting for easy connection to horizontal or vertical pipes with swivel nuts; consists of 2 pieces (head, cup).

Polyphosphate treatment is an effective and cost-effective solution to the problem of limescale buildup and avoids unnecessary maintenance and repair costs. Over time, limescale buildup can clog pipes, reducing the internal cross-section and flow rate, resulting in malfunctioning appliances, reduced energy efficiency, and high maintenance, operation, and repair costs.

Polyphosphate dissolves in water, preventing limescale buildup by preventing the crystallization of calcium and magnesium. Over time, existing deposits are also broken down. Furthermore, polyphosphate dissolved in water also acts as an effective corrosion protection agent by forming a protective film on the internal surface of pipes, coils, etc.

Dosaplus 4 DG is a proportional dosing device compliant with Italian Ministerial Decree 25 and European regulations, manufactured in Italy with top-quality materials.

Technical Specifications:
- Non-toxic materials, suitable for drinking water
- Head: Reinforced polypropylene
- Glass: SAN
- O-ring: EPDM
- Vent valve: Stainless steel body, EPDM O-ring
- Bellows: Natural rubber (NBR)
- IN/OUT connections: CW 614 N brass
- Maximum operating pressure: 8 bar
- Maximum operating temperature: 45° C
- Maximum water hardness: 35° F (350 ppm CaCO3)
- IN/OUT connections: 1/2"

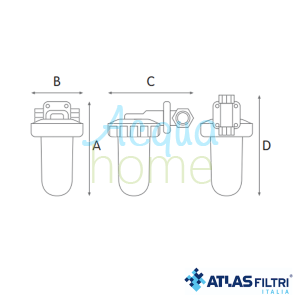

- A: 150 mm B: 65 mm C: 126 mm D: 145 mm

Uses and applications:
- Domestic use to protect pipes, boilers, and other installations using drinking water
- Technical use to protect pipes, fittings, boilers, and water heating systems

Sale package includes:
- Dosaplus 4
- Wrench Tightening torque
- 2 Poliphos A refills
- Use and maintenance manual in Italian

Replacement parts:
- Ready-to-use Poliphos A in skin packs containing two refills or twelve refills

Warning
The treated water can be heated up to 75°C - 80°C; above this temperature, the polyphosphate gradually loses its effectiveness.
