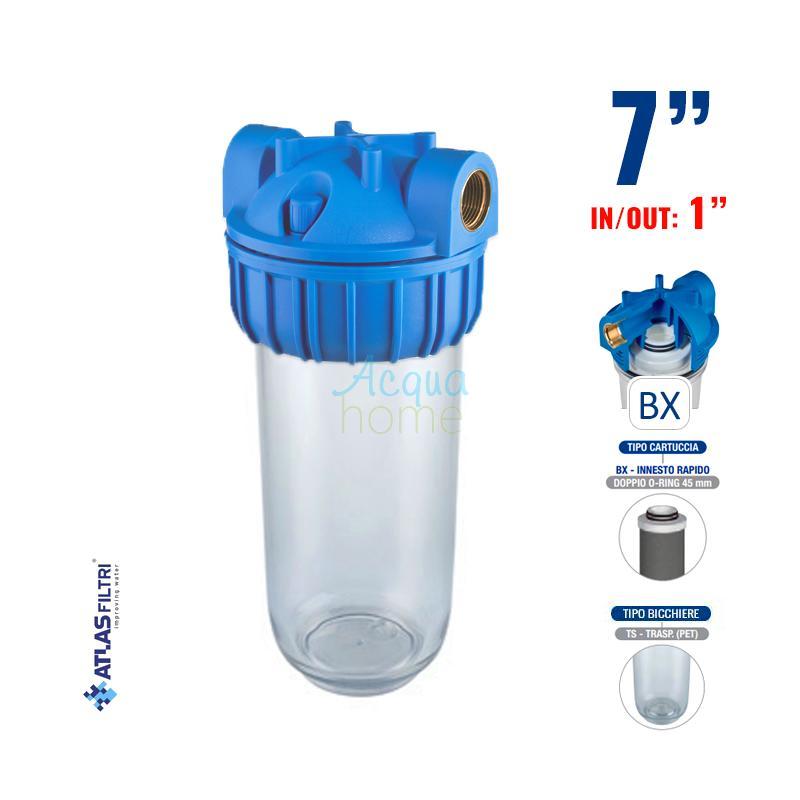

JUNIOR PLUS 3P BFO BX TS - 7" TRANSPARENT CONTAINER FILTER ATT. 1" | ATLAS FILTERS

JUNIOR PLUS 3P BFO BX TS Water Filter - MADE IN ITALY
SINGLE housing for 7" BX cartridge filters (ATLAS FILTRI)
code RA109T721
Dimensions A x B x C in mm: 247 x 133 x 130
SINGLE water filter with 1" female brass connections, size 7" and transparent glass.

THE 3-PIECE PLUS 3P BX WATER FILTERS ARE SUITABLE FOR STANDARD BX FILTER CARTRIDGES (SOE - O-ring 222).
They are available in single, duplex, and triplex versions with transparent or opaque glass.
The IN/OUT connections are available in 3/4" and 1" brass with BSP threads or in plastic with BSP or NPT threads.
The PLUS 3P BX housings can accommodate cartridges. Variable heights from 5" to 20".
Thanks to the innovative construction technique for the two- and three-stage models, featuring a monoblock head, the PLUS 3P BX cartridge filters offer excellent safety performance and quick and easy installation.

For full control of operating conditions, single water filters are available in the M version with pressure gauges, SC + RUB with drain and tap, and SC with drain only.
A wide range of accessories and spare parts is available upon request.

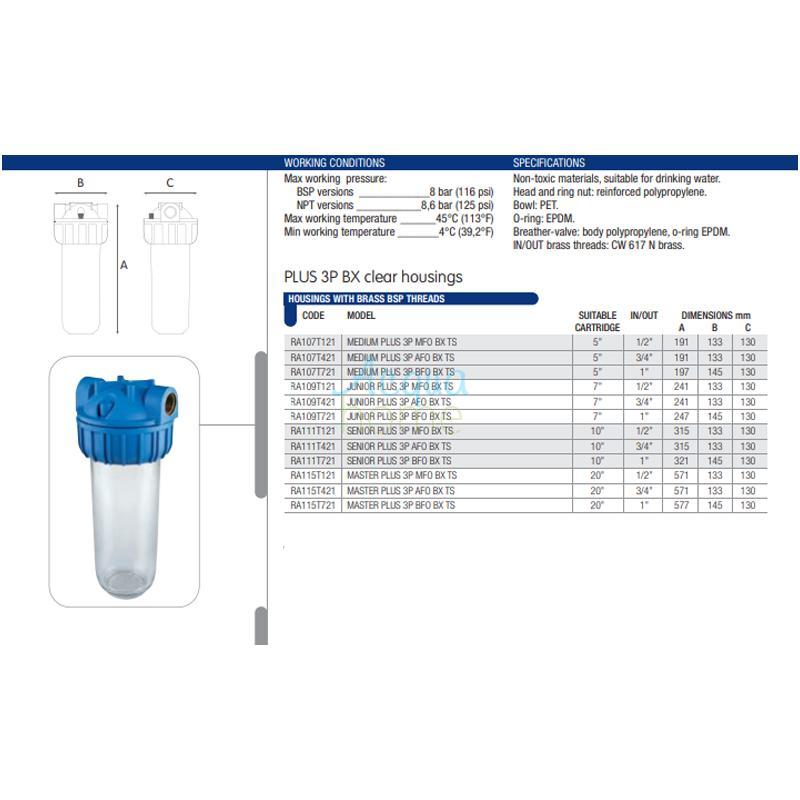

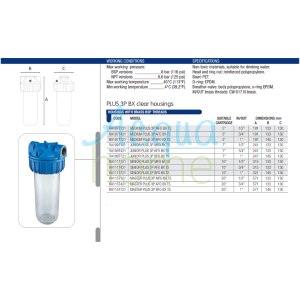

Technical Features:
- Dimensions: A x B x C in mm: 247 x 133 x 130
- Model: Single 3P - 3-piece housing: head, bowl, and ring nut
- Suitable for BX cartridges with double O-rings
- IN/OUT connections: 1" brass
- Bowl: TRANSPARENT (TS)
- Maximum operating temperature: 45°C (113°F)
- Minimum operating temperature: 4°C (39.2°F)
- Maximum operating pressure: 8 bar (116 psi)

Advantages:
- Non-toxic materials, suitable for drinking water
- Excellent sealing and resistance
- Maximum safety in double and triple systems
- Full control with pressure gauges
- Easy maintenance with drain funnel
- Wide range of accessories

Atlas Filtri housing filters are tested and certified by WQA to NSF/ANSI standards 42 and 61 for material strength and safety, in compliance with drinking water regulations (USA). The products comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
