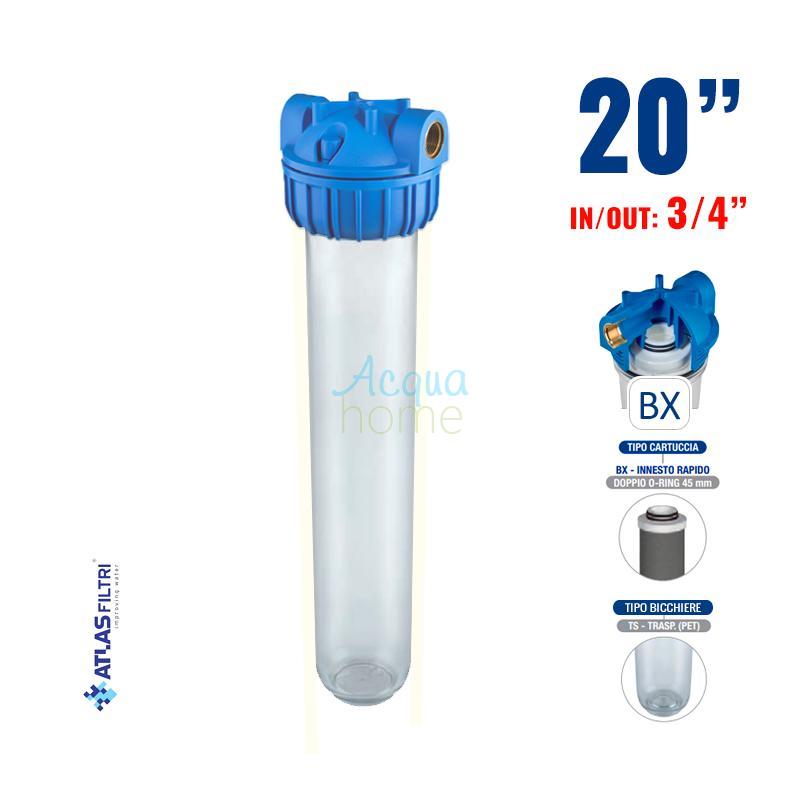

MASTER PLUS 3P AFO BX TS - 20" CLEAR FILTER CONTAINER WITH 3/4" CONNECTOR | ATLAS FILTRI

Master Plus 3P AFO BX TS Water Filter - MADE IN ITALY
Container for 20" BX Cartridge Filters (ATLAS FILTRI)
Code RA115T421
Dimensions A x B x C in mm: 571 x 133 x 130
Water filter with 3/4" female brass connections, size 20" and clear glass.

THE 3-PIECE PLUS 3P BX WATER FILTERS ARE SUITABLE FOR FILTER CARTRIDGES WITH DOUBLE O-RING CONNECTIONS (BX).
They are available in single, duplex, and triplex versions with clear or opaque glass.
The IN/OUT connections are available in 1/2", 3/4", and 1" brass with BSP threads or in plastic with BSP or NPT threads.
PLUS 3P SX housings can accommodate cartridges ranging in height from 5" to 20". Thanks to the innovative construction technique for the two- and three-stage models, featuring a monoblock head, PLUS 3P BX cartridge filters offer excellent safety performance and quick and easy installation.

For full control of operating conditions, single water filters are available in the M version with pressure gauges, SC + RUB with drain and tap, and SC with drain only.
A wide range of accessories and spare parts is available on the website: wrench, bracket, and all spare parts.

**Opaque glass is suitable if the filter must be installed outdoors or in a location accessible to sunlight. It prevents algae growth because it is opaque and therefore impermeable to light.

Technical Features:
- Dimensions: 20" (Masterr)
- Model: Single 3P - 3-piece housing: head, bowl, and ring nut
- Suitable for BX cartridges with double O-rings.
- 3/4" female brass IN/OUT connections
- Transparent bowl
- Maximum operating temperature: 45°C (113°F)
- Maximum operating pressure: 8 bar (116 psi)

Advantages:
- Non-toxic materials, suitable for drinking water
- Various models and configurations
- Easy opening, closing, and sealing with ring nut
- Quick and safe installation

Atlas Filtri housing filters are tested and certified by WQA to NSF/ANSI 42 and 61 standards for material strength and safety, in compliance with drinking water regulations (USA). The products comply with Ministerial Decree 25 (Italy) and are tested and certified according to the strictest global standards, obtaining the ACS (France), EAC/Ghostreghistrazia (Russia) and WaterMark (Australia) health certification.
