RL 7" BX 50 MCR - WASHABLE NET CARTRIDGE | ATLAS FILTRI

CARTRIDGE FILTER - RL 7" BX 50 MCR - MADE IN ITALY
for JUNIOR BX container filter (ATLAS FILTRI)
Manufacturer code: RA5014214

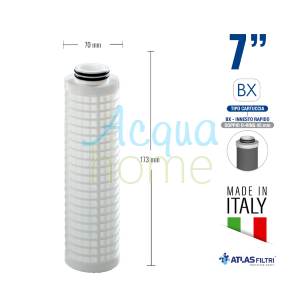

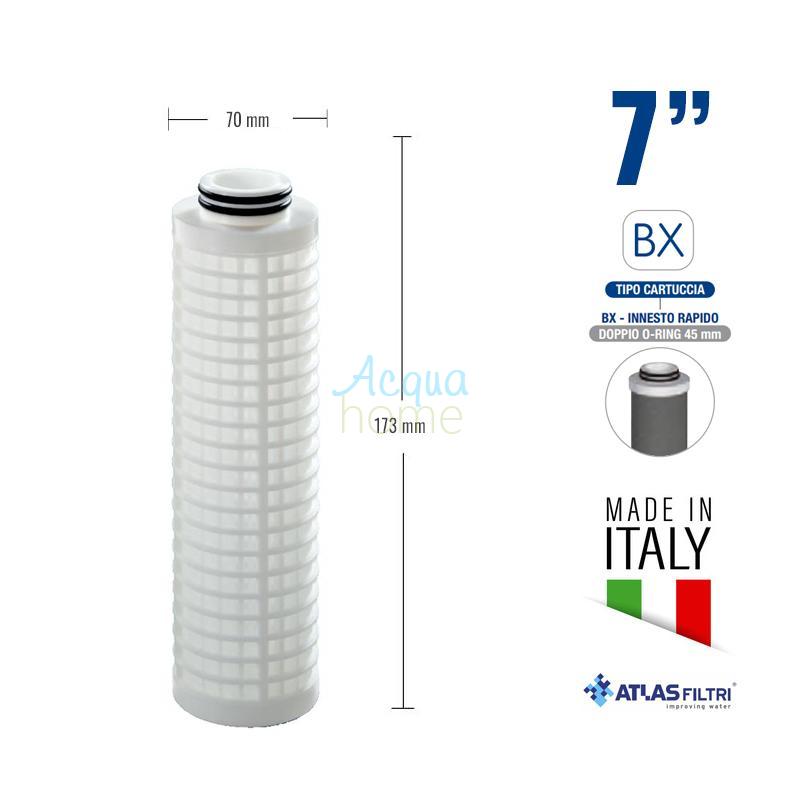

Dimensions: L x H: 70 mm x 173 mm x connection: 30 mm

Washable filter cartridge with tubular polyester mesh. 50-micron filtration.
Washable cartridge made in Italy by ATLAS FILTRI for the filtration of drinking water. Washing the filter media can restore conditions comparable to those of a new cartridge.

Washable mesh cartridges with a nominal filtration of 50 microns allow for uniform water flow and very low pressure drops.
The cartridges are produced without glue or sealants, and the meshes are molded onto the rigid structural support (frame).
Rigid support cartridges designed for high strength and durability, in heights of 5", 7", 10", and 20".

OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months

TECHNICAL SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter media: polyester mesh.
Frame and plates: polypropylene.
O-rings: EPDM.

- Filtration: 50 microns
- Nominal height: 7" (approximately 17.5 cm)
- Nominal flow rate: 1700 L/h
- Dimensions (HxWxD): 173x70x30 mm
- Suitable container: Atlas Filtri JUNIOR BX
- BX quick-fit with double O-ring 45 mm

CERTIFICATIONS

RL BX and RS BX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
