RS 10" BX 50 MCR - WASHABLE PLEATED MESH CARTRIDGE | ATLAS FILTRI

CARTRIDGE FILTER - RS 10" BX 50 MCR - MADE IN ITALY
for SENIOR BX container filter (ATLAS FILTRI)
Manufacturer code: RA5025214

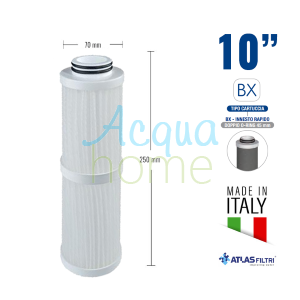

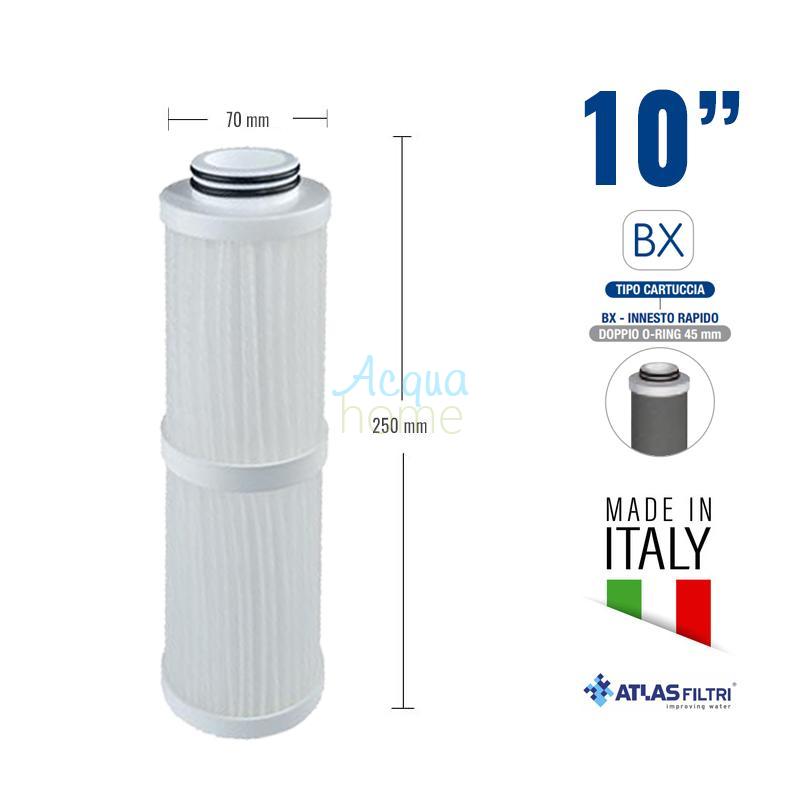

Dimensions: L x H: 70 mm x 250 mm x connection: 30 mm

Washable filter cartridge with polypropylene mesh filter media. 50 micron filtration.
Washable cartridge made in Italy by ATLAS FILTRI for filtering drinking water. Washing the filter media can restore conditions comparable to those of a new cartridge.

They can be reused over time without losing filtration efficiency, and cleaning is easy.
RS BX washable cartridges provide high flow rates with low pressure drops and a large filter surface area. They are available in different models and configurations. Heights range from 4" to 20". Nominal flow rates up to 4000 l/h.

OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months

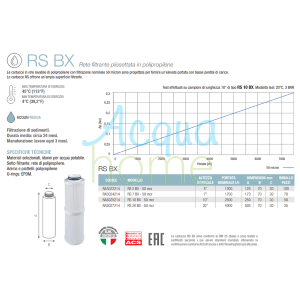

TECHNICAL SPECIFICATIONS
- Non-toxic materials, suitable for drinking water.
- Filter media: polypropylene mesh.
- Frame: polypropylene.
- Filtration: 50 microns
- Nominal height: 10" (approximately 25 cm)
- Nominal flow rate: 2500 L/h
- Dimensions (HxWxD): 250x70x30 mm
- Lifespan: 24 months
- Maintenance: wash every 3 months
- Suitable container: SENIOR BX Atlas Filtri
- BX quick-fit with double O-ring 45 mm
- O-rings: EPDM

CERTIFICATIONS

RS BX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
