SA 10" A BX 50 MCR - AISI 316 STAINLESS STEEL PLEATED WASHABLE MESH CARTRIDGE | ATLAS FILTRI

CARTRIDGE FILTER - SA 10" A BX 50 MCR - MADE IN ITALY
for SENIOR BX container filter (ATLAS FILTRI)
Manufacturer code: RA5055214

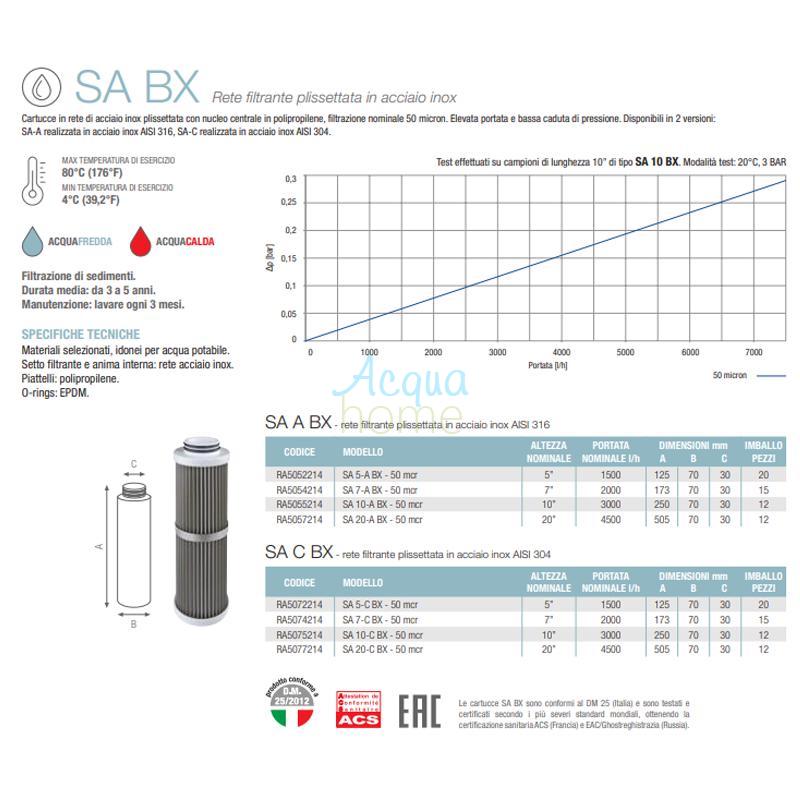

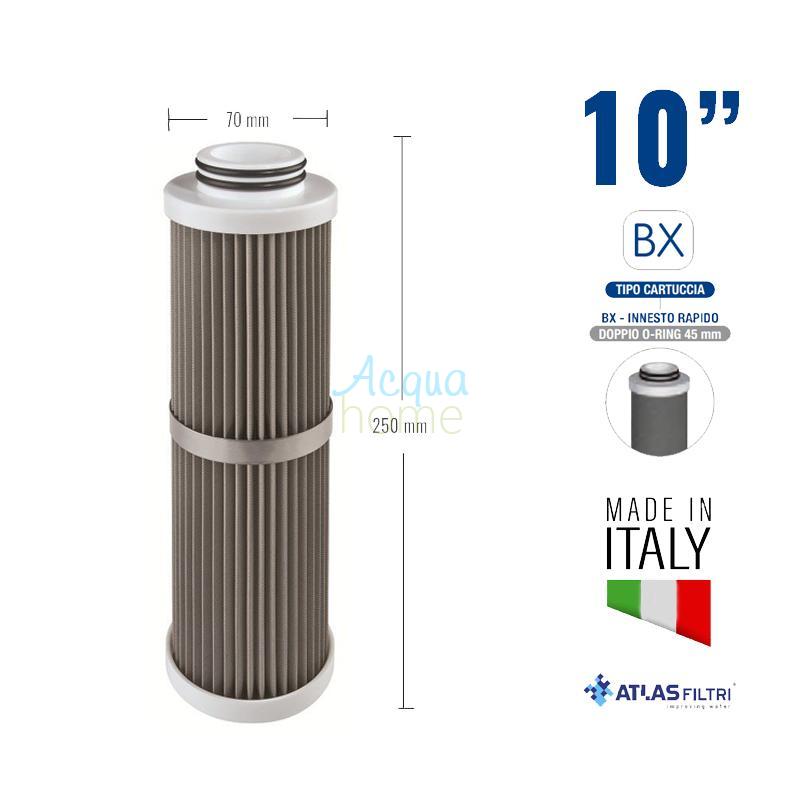

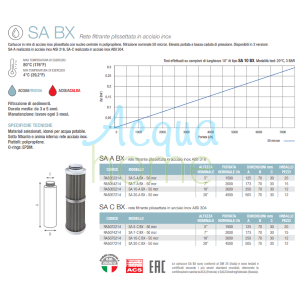

Dimensions: L x H: 70 mm x 250 mm x connection: 30 mm

The SA BX (SOE-O-RING 222) WASHABLE MESH FILTER CARTRIDGES with quick-connect fitting and double O-rings are made of pleated stainless steel mesh with a central polypropylene core.
They guarantee nominal filtration up to 50 microns and a particularly large filter surface area. The models are available in various heights, from 5" to 20" and allow for high flow rates and low pressure drop.
They are available in the following models:
-SA-A in AISI stainless steel 316
-SA-C in AISI 304 stainless steel

All filter elements are easily washable, ensuring perfect functionality for immediate use.
Filter cartridges are available in various configurations and diameters.

Technical Features:
- Dimensions: 10"
- Filtration: 50 microns
- Depth filter cartridges for sediment removal
- BX quick-fit with double 45 mm O-ring
- Can be installed on PLUS 3P BX containers, DP containers, K DP containers, DEPURAL TOP, BRAVO DP, OASIS DP (SENIOR size)
- Filter media: AISI 316 stainless steel mesh
- Plates (20" model only): polypropylene
- Maximum operating temperature: 80° C (176° F)
- Minimum operating temperature: 4° C (39.2° F)
- Average lifespan: 3 to 5 years
- Maintenance: Wash every 3 months
- Intended for drinking water. Do not use with microbiologically impure water or water of unknown quality.

Advantages:
- Non-toxic materials, suitable for drinking water
- Various models and configurations
- Large filter surface area
- Long life even at high temperatures
- High flow rate and low pressure drop
- Perfect seal with 45 mm double O-ring

SA BX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining EAC/Ghostreghistrazia (Russia), ACS (France), and WaterMark (Australia) health certification.
