TS 20" BX 50 MCR - PLEATED FABRIC CARTRIDGE | ATLAS FILTRI

CARTRIDGE FILTER - TS 20" BX 50 MCR - MADE IN ITALY
for MASTER BX container filter (ATLAS FILTRI)
Code RA5047214

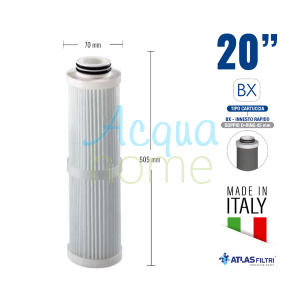

Dimensions L x H: 61 x 505 mm x connection: 30 mm

TS BX FILTER CARTRIDGES (SOE-O-RING 222) ARE MADE WITH PLEATED POLYESTER FABRIC TO INCREASE THE FILTERING SURFACE AREA AND MAXIMIZE THE RETENTION OF SEDIMENTS, FLAKES, AND IMPURITIES IN THE WATER.

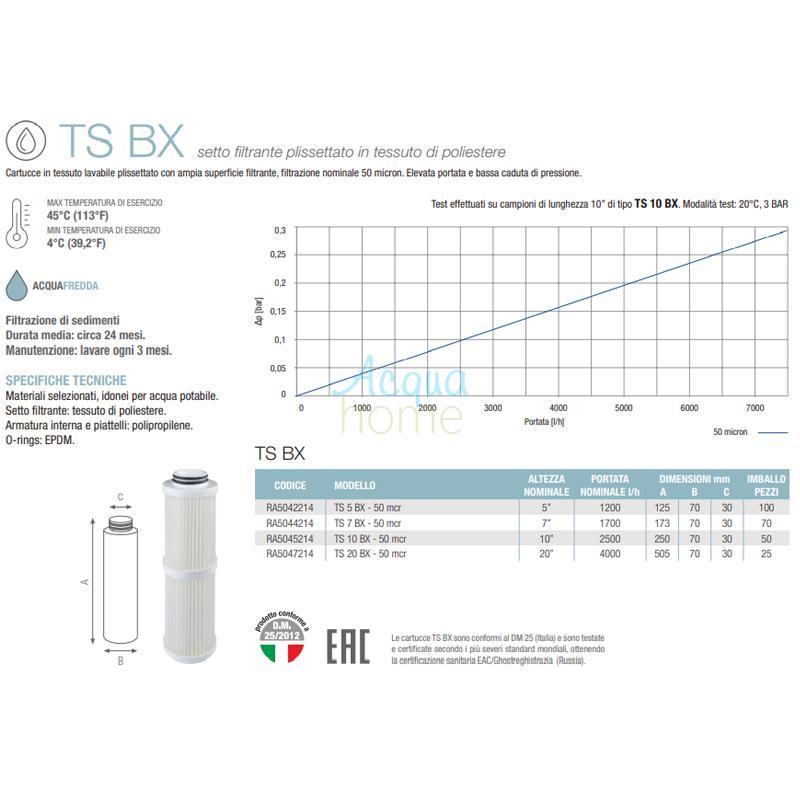

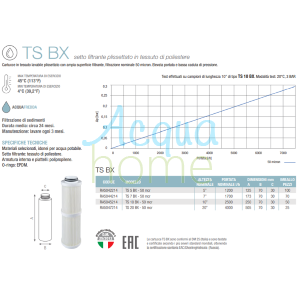

They are suitable for flow rates up to 4000 l/h, characterized by longer life and low pressure drop, with a filtration rating of 50 microns.
Filter cartridges are available in heights of 5", 7", 10", and 20", in various models and configurations. Different.

These cartridges are suitable for many industrial applications thanks to their broad chemical and physical compatibility and use with water or other liquids in the chemical, petrochemical, photographic, electroplating, and pharmaceutical industries.

Technical Features:
- Dimensions: 20"
- Filtration: 50 microns
- Depth filter cartridges for sediment removal
- BX quick-fit with double 45 mm O-ring
- Can be installed on PLUS 3P BX containers, DP containers, K DP containers, and DEPURAL TOP (SENIOR size)
- Filter media: polyester fabric
- Maximum operating temperature: 45°C (113°F)
- Minimum operating temperature: 4°C (39.2°F)
- Average life: 12 months
- Maintenance: none
- Intended for drinking water. Do not use with microbiologically impure water or water of unknown quality.

Advantages:
- Filtration of fine sediment
- Non-toxic materials, suitable for drinking water
- Various models and configurations
- Perfect seal with double 45 mm O-ring
- Long-lasting and efficient over time

TS cartridges BX products comply with Ministerial Decree 25 (Italy) and are tested and certified according to the strictest global standards, obtaining the EAC/Ghostreghistrazia (Russia), ACS (France) and WaterMark (Australia) health certification.
