MIGNON DUPLEX PLUS 3P MFO SX AS - MIGNON TRANSPARENT CONTAINER FILTER ATT. 1/2" | ATLAS FILTERS

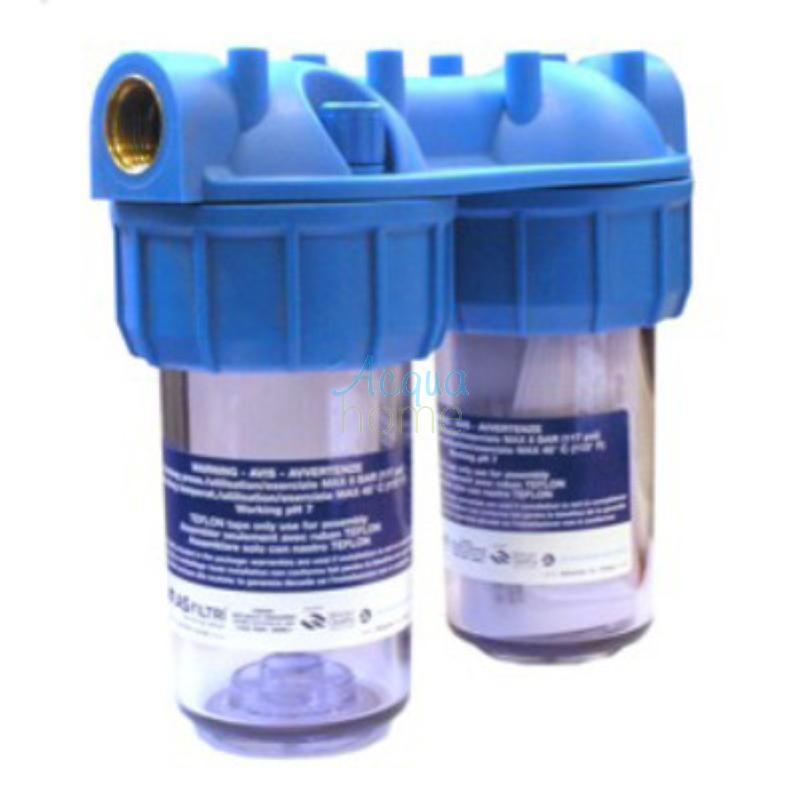

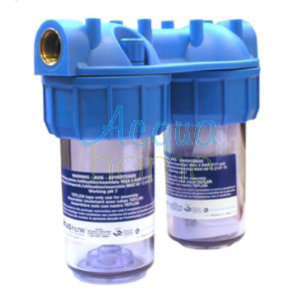

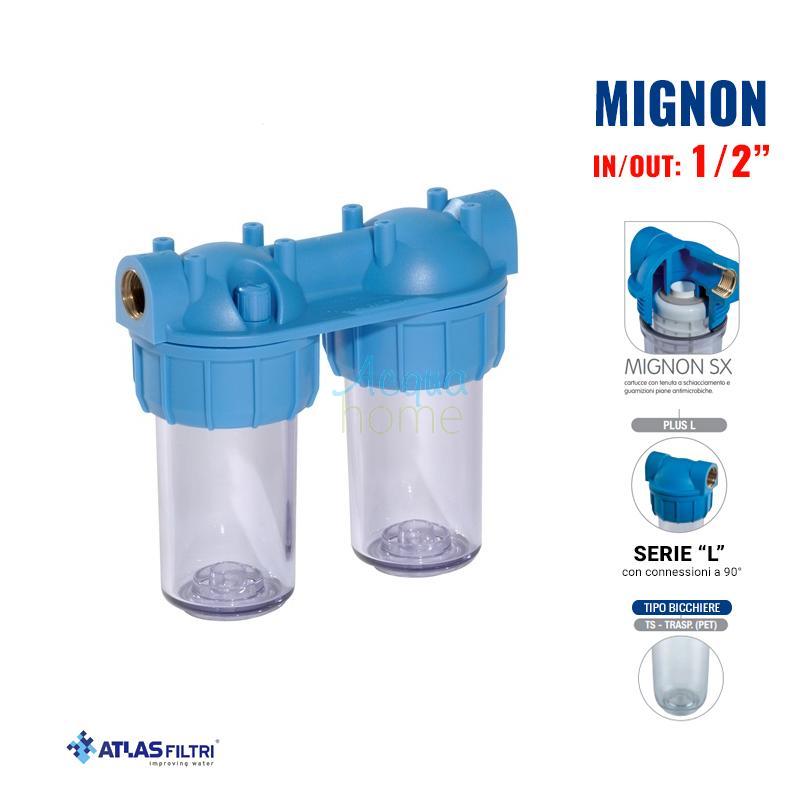

MIGNON DUPLEX PLUS 3P MFO SX AS Water Filter - MADE IN ITALY

Double housing for 5" miniature cartridge filters
Item code: RA102P111
Dimensions A x B x C in mm:
Water filter with 1/2" female brass connections, 5" miniature size, and clear glass.

THE 3-PIECE PLUS 3P SX WATER FILTERS ARE SUITABLE FOR STANDARD SX (DOE) FILTER CARTRIDGES.

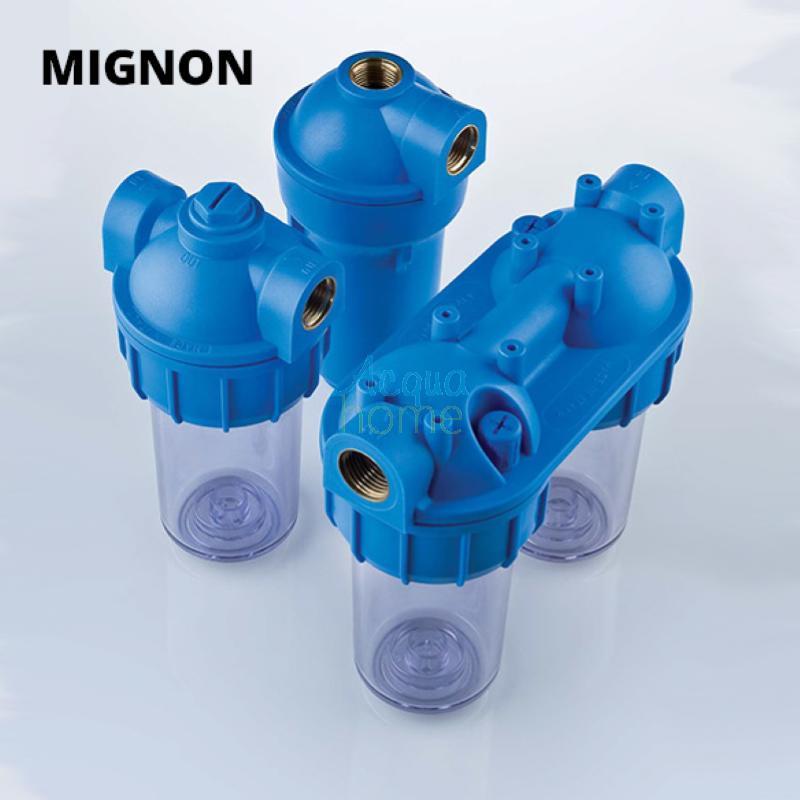

They are available in single, DUPLEX, and TRIPLEX versions with clear or opaque glass.
The IN/OUT connections are available in 1/2", 3/4", and 1" brass with BSP threads, or in plastic with BSP or NPT threads.
The PLUS 3P SX housings can accommodate cartridges with heights ranging from 5" to 20".
Thanks to the innovative construction technique for the two- and three-stage models, featuring a monoblock head, the PLUS 3P SX cartridge filters offer excellent safety performance and quick and easy installation.

For full control of operating conditions, single water filters are available in the M version with pressure gauges, SC + RUB with drain and tap, and SC with drain only.
A wide range of accessories and spare parts is available upon request.

Technical Features:
- Dimensions: -> see the "Features" tab
- Model: Single 3P - 3-piece housing: head, bowl, and ring nut
- Suitable for SX crush cartridges
- IN/OUT connections: available with brass or plastic insert and in various sizes -> see the "Features" tab
- Bowl: available opaque (AB) or transparent (TS) -> see the "Features" tab
- Maximum operating temperature: 45°C (113°F)
- Maximum operating pressure: 8 bar (116 psi)

Advantages:
+ Non-toxic materials, suitable for drinking water
+ Various models and configurations
+ Easy opening, closing, and sealing with ring nut
+ Quick and safe installation

Atlas Filtri housing filters are tested and certified by WQA to NSF/ANSI 42 and 61 standards for material strength and safety, in compliance Drinking water regulations (USA). The products comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.

**All product-specific information is listed at the top of the page. For more information, please contact us.
