MIGNON PLUS L 3P MFO SX AB - MATT MIGNON CONTAINER FILTER ATT. 1/2" | ATLAS FILTERS

MIGNON PLUS L 3P MFO SX AB Water Filter - MADE IN ITALY

Single housing for 5" miniature cartridge filters
Item code: RA101P112

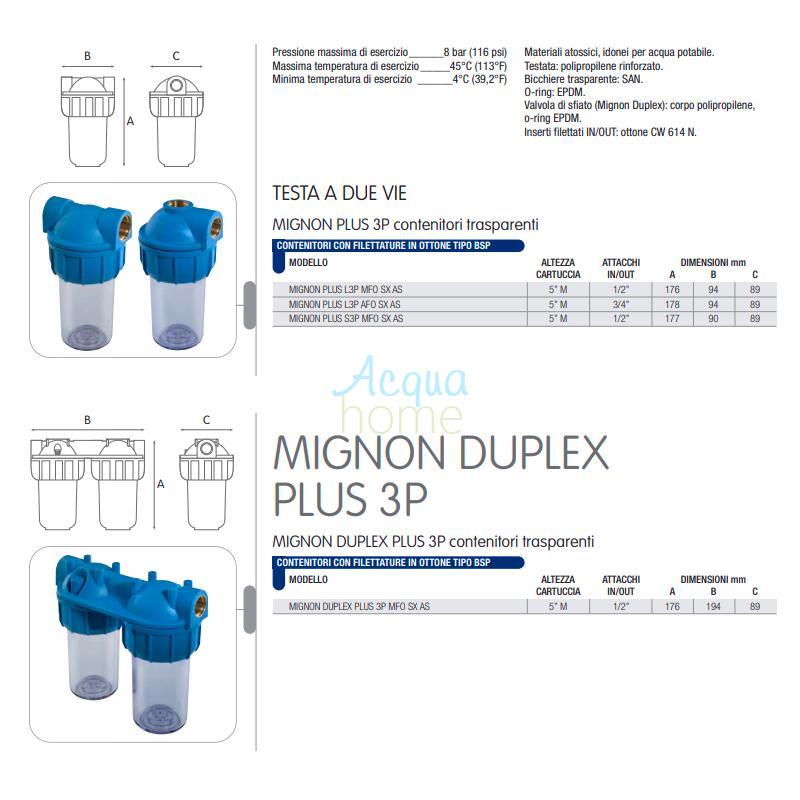

Dimensions A x B x C in mm: 176 x 94 x 89

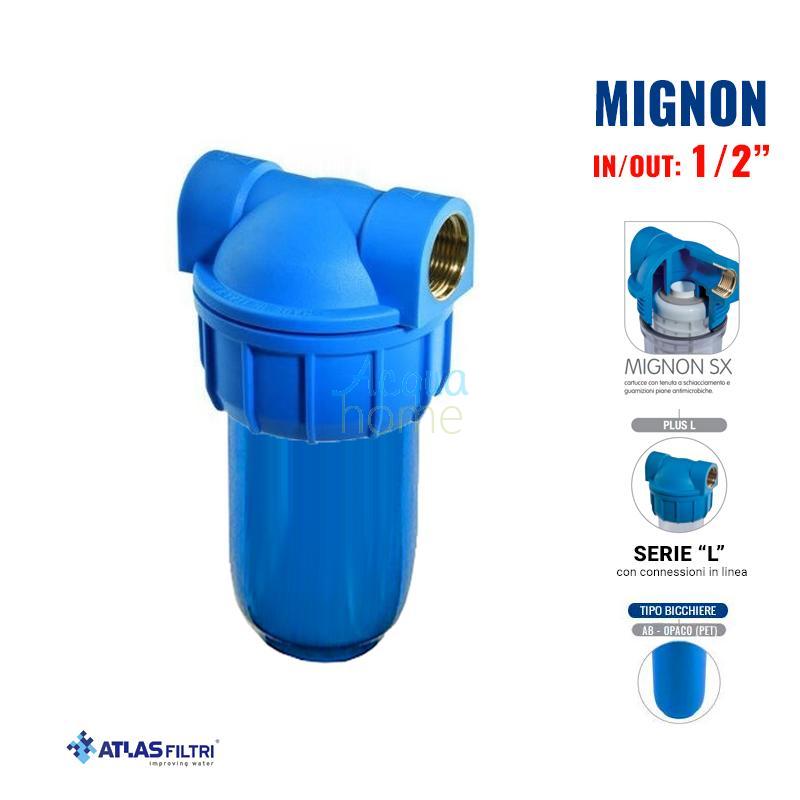

Water filter with 1/2" in-line female brass connections, 5" MIGNON size, and opaque bowl

THE 3-PIECE PLUS 3P SX WATER FILTERS ARE SUITABLE FOR STANDARD SX (DOE) FILTER CARTRIDGES.
They are available in single, duplex, and triplex versions with a transparent or opaque bowl.
The IN/OUT connections are available in 1/2", 3/4", and 1" brass with BSP threads, or in plastic with BSP or NPT threads.
PLUS 3P SX housings can accommodate cartridges ranging in height from 5" to 20".
Thanks to the innovative construction technique for the two- and three-stage models, featuring a monoblock head, PLUS 3P SX cartridge filters offer excellent safety performance and quick and easy installation.

For full control of operating conditions, single water filters are available in the M version with pressure gauges, SC + RUB with drain and tap, and SC with drain only.
A wide range of accessories and spare parts is available upon request.

Technical Features:
- Dimensions: -> see the "Features" tab

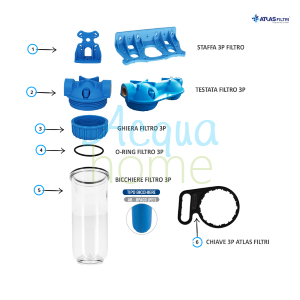

- Model: Single 3P - 3-piece housing: head, bowl, and ring nut
- Suitable for SX crush cartridges
- IN/OUT connections: available with brass or plastic insert and in various sizes -> see the "Features" tab

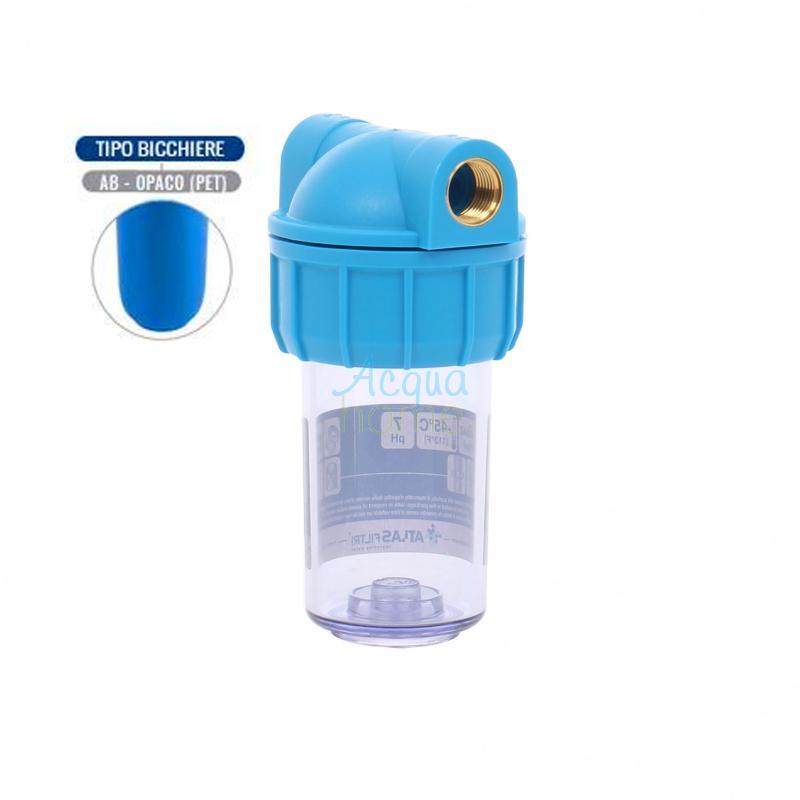

- Bowl: available opaque (AB) or transparent (TS) -> see the "Features" tab
- Maximum operating temperature: 45°C (113°F)
- Maximum operating pressure: 8 bar (116 psi)

Advantages:
+ Non-toxic materials, suitable for drinking water
+ Various models and configurations
+ Easy opening, closing, and sealing with ring nut
+ Quick and safe installation

Atlas Filtri housing filters are tested and certified by WQA to NSF/ANSI 42 and 61 standards for material strength and safety, in compliance Drinking water regulations (USA). The products comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.

**All product-specific information is listed at the top of the page. For more information, please contact us.
