RA 20" C SX 70 MCR - WASHABLE TUBULAR NET CARTRIDGE IN AISI 304 STAINLESS STEEL - ATLAS FILTRI

CARTRIDGE FILTER - RA 20" C SX 70 MCR - MADE IN ITALY
for MASTER SX container filter (ATLAS FILTRI)
Manufacturer code: RA5087116

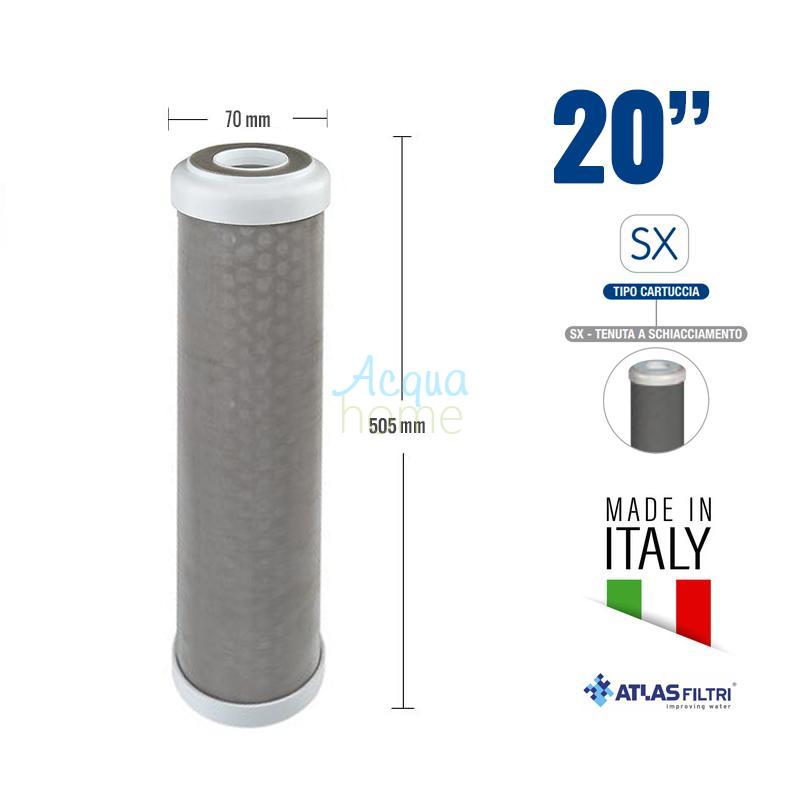

Dimensions: L x H: 70 mm x 505 mm x connection: 30 mm

SUITABLE FOR WELL WATER FILTRATION.

Washable filter cartridge with mesh and 304 stainless steel frame for removing coarse sediment. 70 micron filtration.
Washable cartridge made in Italy by ATLAS FILTRI for drinking water filtration. Washing the filter media can restore conditions comparable to those of a new cartridge.

They can be reused over time without losing filtration efficiency, and cleaning is easy.
RA SX washable cartridges allow for high flow rates with low pressure drops and a large filtering surface area. They are available in different models and configurations. Different heights. From 4" to 20". Nominal flow rate up to 4000 l/h.

OPERATING CONDITIONS
- Maximum operating temperature _____80°C (176°F)
- Minimum operating temperature ______4°C (39.2°F)
- Average lifespan: 3 to 5 years

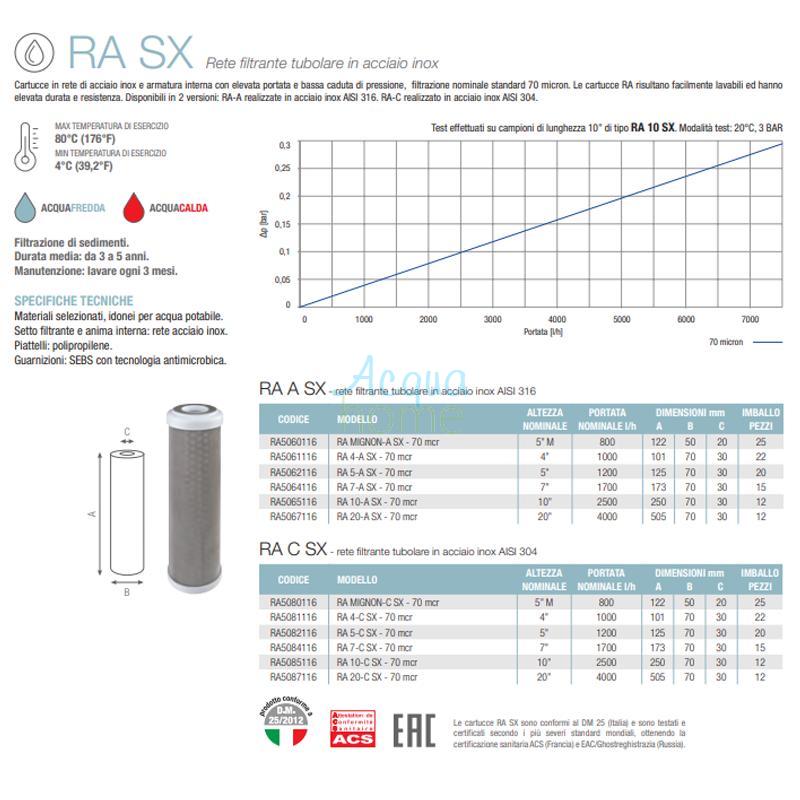

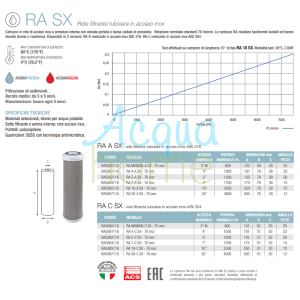

TECHNICAL SPECIFICATIONS
- Non-toxic materials, suitable for drinking water.
- Filter media: 304 stainless steel mesh
- Frame: 304 stainless steel
- Seals: SEBS with antimicrobial technology
- Filtration: 70 microns
- Nominal height: 20"
- Nominal flow rate: 4000 L/h
- Dimensions (HxWxD): 505x70x30 mm
- Suitable housing: MASTER SX Atlas Filtri
- SX flattening

CERTIFICATIONS
RA SX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
