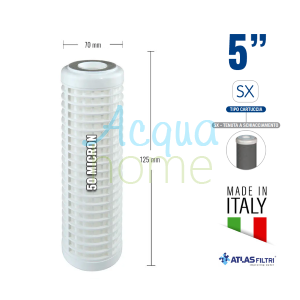

RL 5" SX 50 MCR - WASHABLE NET CARTRIDGE | ATLAS FILTRI (5")

CARTRIDGE FILTER - RL 5" SX 50 MCR - MADE IN ITALY
for MEDIUM SX container filter (ATLAS FILTRI)
Manufacturer code: RA5012114
Dimensions: L x H: 70 mm x 125 mm x connection: 30 mm

Washable filter cartridge with tubular polyester mesh. 50-micron filtration.
Washable cartridge made in Italy by ATLAS FILTRI for filtering drinking water. Washing the filter media can restore conditions comparable to those of a new cartridge.

Washable mesh cartridges with a nominal filtration of 50 microns allow for uniform water flow and very low pressure drops.
The cartridges are produced without glue or sealants, and the mesh is molded onto a rigid structural support (frame).
Rigid support cartridges designed for high strength and durability, in heights of 4", 5" MIGNON, 5", 7", 10" and 20".

OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months

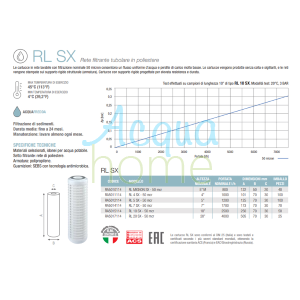

TECHNICAL SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter media: polyester mesh.
Frame and plates: polypropylene.
O-rings: EPDM.

- Filtration: 50 microns
- Nominal height: 5" (approximately 12.5 cm)
- Nominal flow rate: 1200 L/h
- Dimensions (HxWxD): 125x70x30 mm
- Suitable container: Medium SX Atlas Filtri
- SX flattening

CERTIFICATIONS
RL BX and RS BX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
