RL 7" SX 50 MCR - WASHABLE NET CARTRIDGE | ATLAS FILTRI (7")

CARTRIDGE FILTER - RL 7" SX 50 MCR - MADE IN ITALY
for JUNIOR SX container filter (ATLAS FILTRI)
Manufacturer code: RA5014114

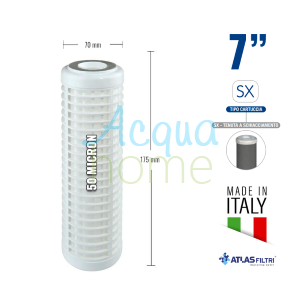

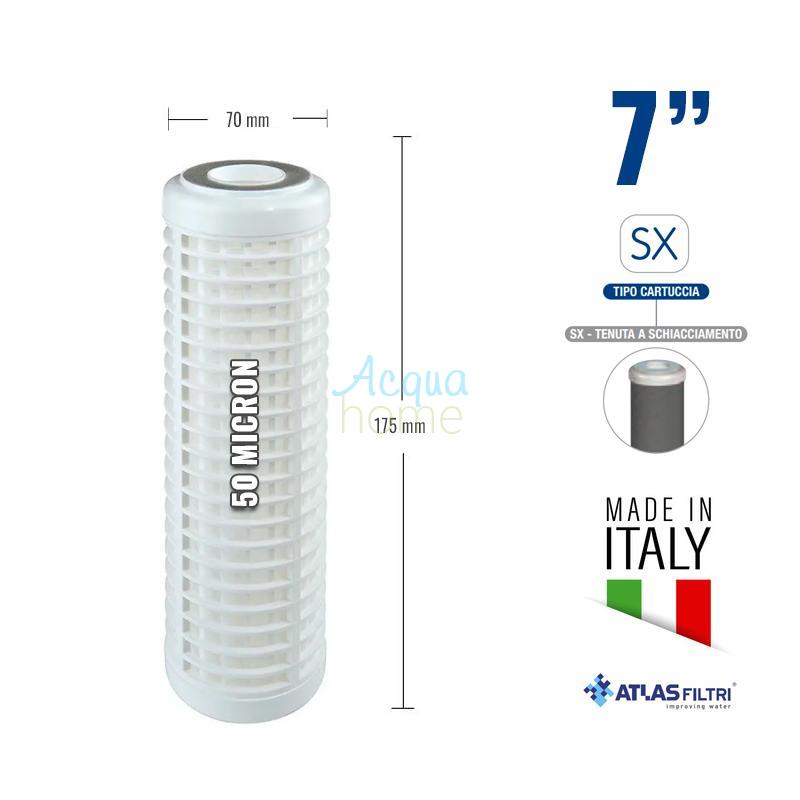

Dimensions: L x H: 70 mm x 175 mm x connection: 30 mm

Washable filter cartridge with tubular polyester mesh. 50-micron filtration.
Washable cartridge made in Italy by ATLAS FILTRI for filtering drinking water. Washing the filter media can restore conditions comparable to those of a new cartridge.

Washable mesh cartridges with a nominal filtration of 50 microns allow for uniform water flow and very low pressure drops.
The cartridges are produced without glue or sealants, and the mesh is molded onto a rigid structural support (frame).
Rigid support cartridges designed for high strength and durability, in heights of 4", 5" MIGNON, 5", 7", 10" and 20".

OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months

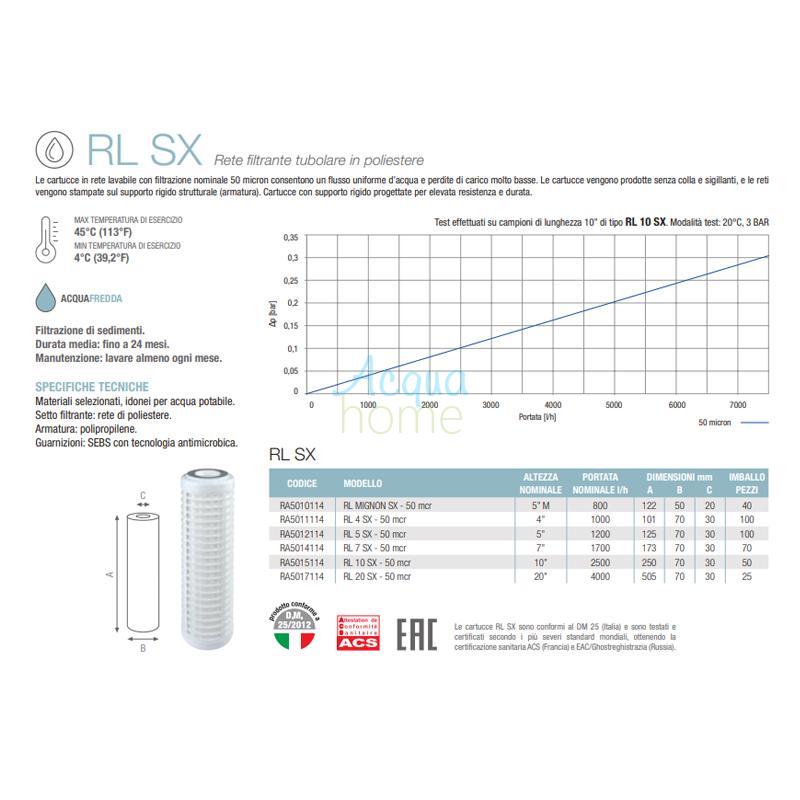

TECHNICAL SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter media: polyester mesh.
Frame and plates: polypropylene.
O-rings: EPDM.

- Filtration: 50 microns
- Nominal height: 7" (approximately 17.3 cm)
- Nominal flow rate: 1700 L/h
- Dimensions (HxWxD): 173x70x30 mm
- Suitable container: Junior SX Atlas Filtri
- SX crush filter

CERTIFICATIONS

RL BX and RS BX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
