RL MIGNON SX 50 MCR - WASHABLE MESH CARTRIDGE | ATLAS FILTERS (5" M - Mignon)

CARTRIDGE FILTER - RL MIGNON SX 50 MCR - MADE IN ITALY
for MIGNON SX container filter (ATLAS FILTRI)
Manufacturer code: RA5010114

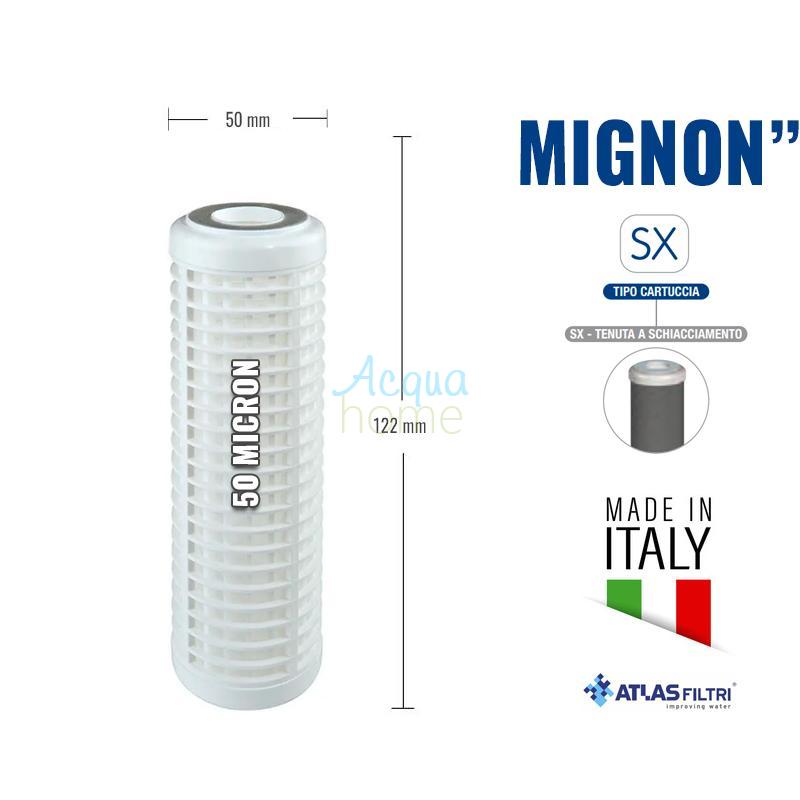

Dimensions: L x H: 50 mm x 122 mm x connection: 20 mm

Washable filter cartridge with tubular polyester mesh. 50-micron filtration.
Washable cartridge made in Italy by ATLAS FILTRI for filtering drinking water. Washing the filter media can restore conditions comparable to those of a new cartridge.

Washable mesh cartridges with a nominal filtration of 50 microns allow for uniform water flow and very low pressure drops.
The cartridges are produced without glue or sealants, and the meshes are molded onto the rigid structural support (frame).
Rigid-support cartridges designed for high strength and durability, available in 4", 5" MIGNON, 5", 7", 10", and 20" heights.

OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months

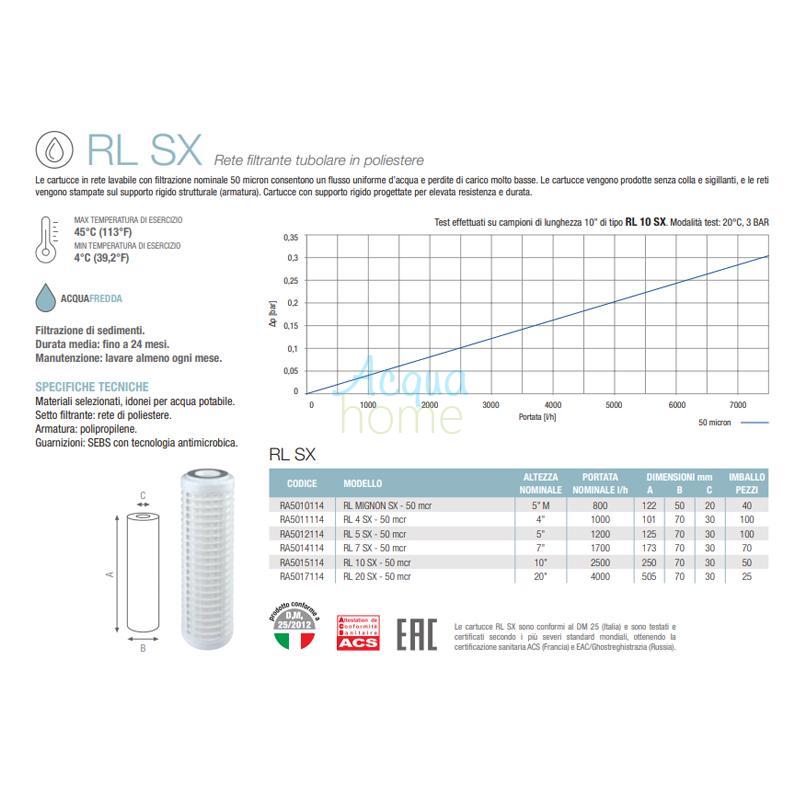

TECHNICAL SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter media: polyester mesh.
Frame and plates: polypropylene.
O-rings: EPDM.

- Filtration: 50 microns
- Nominal height: MIGNON 5" approximately 12.5 cm
- Nominal flow rate: 800 L/h
- Dimensions (HxWxD): 122x50x20 mm
- Suitable container: Mignon SX Atlas Filtri
- SX flattening

CERTIFICATIONS

RL BX and RS BX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
