RS 7" SX 50 MCR - WASHABLE PLEATED MESH CARTRIDGE | ATLAS FILTRI

CARTRIDGE FILTER - RS 7" SX 50 MCR - MADE IN ITALY
for JUNIOR SX container filter (ATLAS FILTRI)
Manufacturer code: RA5024114

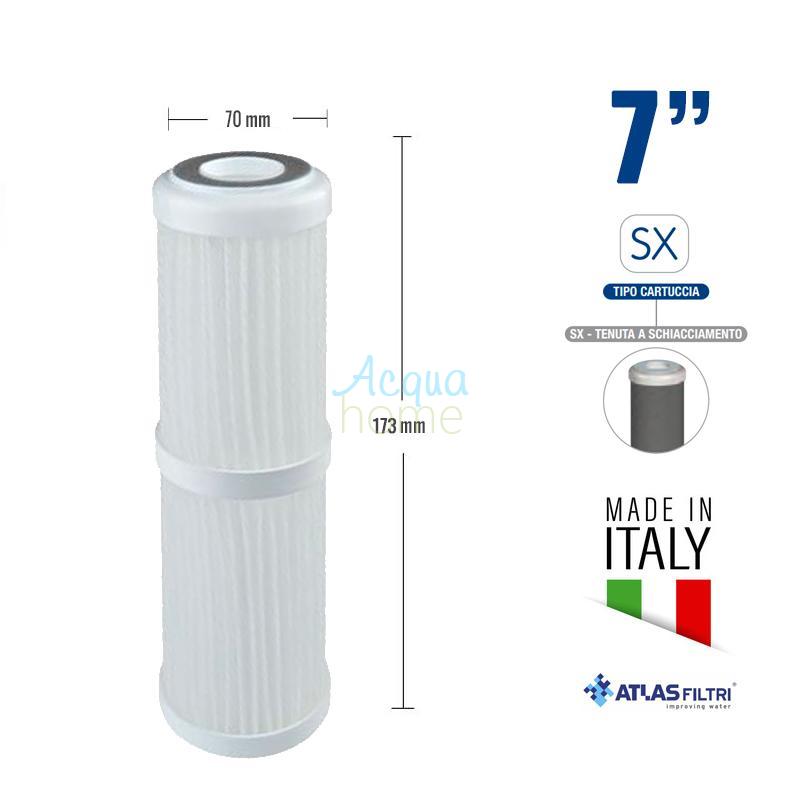

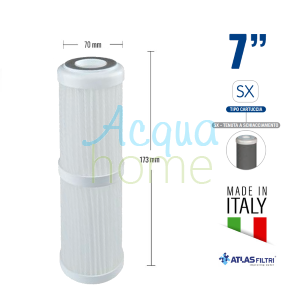

Dimensions: L x H: 70 mm x 173 mm x connection: 30 mm

Washable filter cartridge with polypropylene mesh filter media. 50 micron filtration.
Washable cartridge made in Italy by ATLAS FILTRI for filtering drinking water. Washing the filter media can restore conditions comparable to those of a new cartridge.

They can be reused over time without losing filtration efficiency, and cleaning is easy.

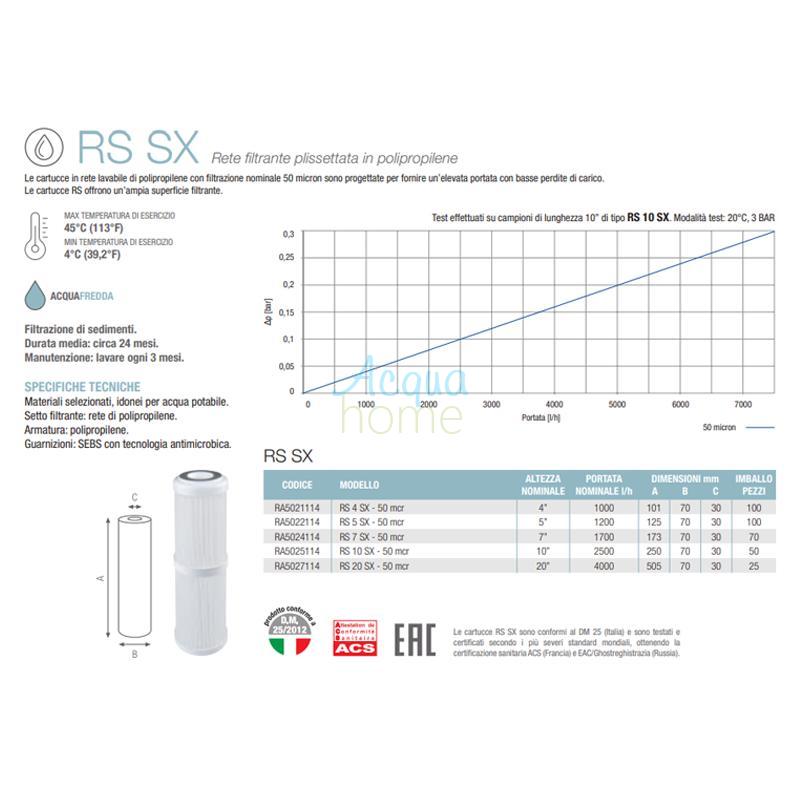

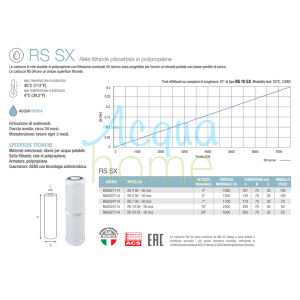

RS SX washable cartridges provide high flow rates with low pressure drops and a large filter surface area. They are available in different models and configurations. Heights range from 4" to 20". Nominal flow rates up to 4000 l/h.

TERMS OPERATING
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months

TECHNICAL SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter media: polypropylene mesh.
Frame: polypropylene.
Seals: SEBS with antimicrobial technology

- Filtration: 50 microns
- Nominal height: 7" (approximately 17.3 cm)
- Nominal flow rate: 1700 L/h
- Dimensions (HxWxD): 173x70x30 mm
- Suitable container: Atlas Filtri JUNIOR SX
- SX crushing

CERTIFICATIONS

RL BX and RS BX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
