SA 10" A SX 50 MCR - WASHABLE PLEATED MESH CARTRIDGE IN AISI 316 STAINLESS STEEL | ATLAS FILTRI

CARTRIDGE FILTER - SA 10" A SX 50 MICRON - MADE IN ITALY
for SENIOR SX container filter (ATLAS FILTRI)
code RA5055114

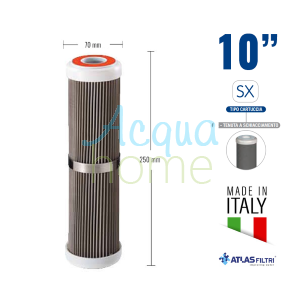

dimensions L x H: 70 mm x 250 mm x connection: 30 mm

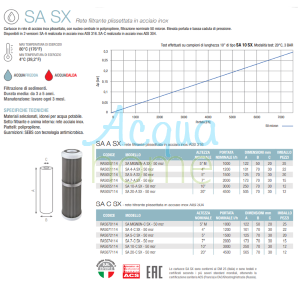

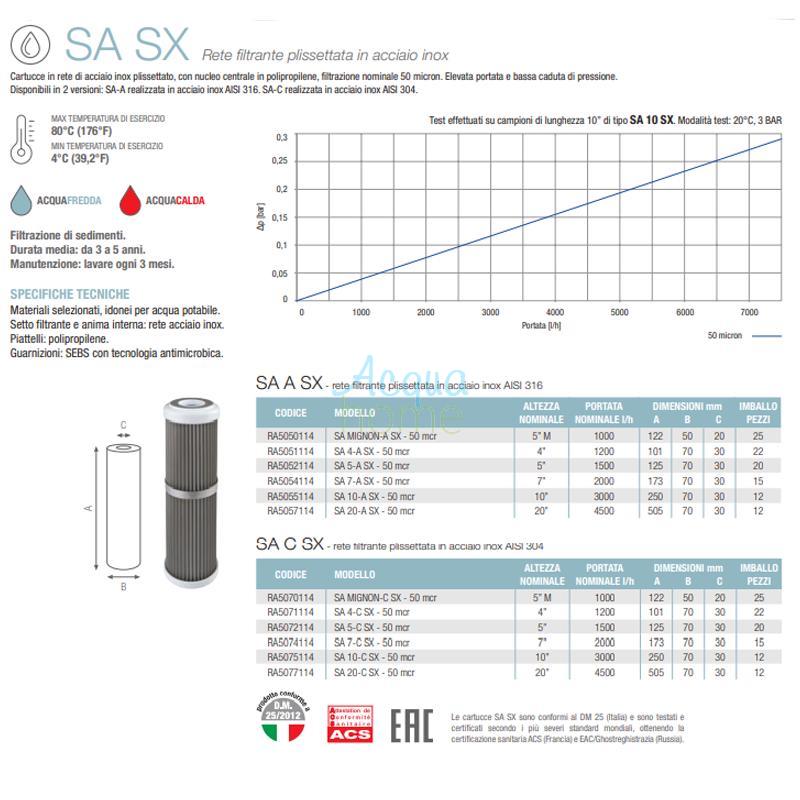

SA SX (DOE) WASHABLE MESH FILTER CARTRIDGES ARE FILTER ELEMENTS WITH A PLEATED STAINLESS STEEL MESH STRUCTURE SUPPORTED BY A CENTRAL POLYPROPYLENE CORE, TO ENSURE A LARGE FILTRATION SURFACE AREA.
Washing the filter media restores the cartridge to as good as new. SA SX cartridges provide high flow rates while maintaining low pressure drop.
With a filtration rating of 50 microns, they are available in 2 versions:
-SA-A made of AISI stainless steel 316
-SA-C made of AISI 304 stainless steel

Both filter cartridge models are available in heights ranging from 4" to 20", with different diameters and configurations.

Technical Features:
- Size: 10"
- Filtration: 50 microns
- Depth filter cartridges for sediment removal
- SX double open end (DOE) with antimicrobial flat gaskets
- Can be installed on SX containers, DP containers, DEPURAL, DEPURAL TOP, BRAVO DP, and OASIS DP (SENIOR size)
- Filter media: AISI 316 stainless steel mesh
- Plates (20" model only): polypropylene
- Gaskets: SEBS with antimicrobial technology
- Maximum operating temperature: 80° C (176° F)
- Minimum operating temperature: 4° C (39.2° F)
- Average lifespan: 3 to 5 years
- Maintenance: Flush every 3 months
- Intended for drinking water. Do not use with microbiologically impure water or water of unknown quality.

Advantages:
- Non-toxic materials, suitable for drinking water
- Various models and configurations
- Large filter surface area
- Long life even at high temperatures
- High flow rate and low pressure drop

SA SX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining EAC/Ghostreghistrazia (Russia), ACS (France), and WaterMark (Australia) health certification.
