TS 10" SX 50 MCR - PLEATED FABRIC CARTRIDGE | ATLAS FILTRI

CARTRIDGE FILTER - TS 10" SX 50 MCR - MADE IN ITALY
for SENIOR SX container filter (ATLAS FILTRI)
Code RA5045114

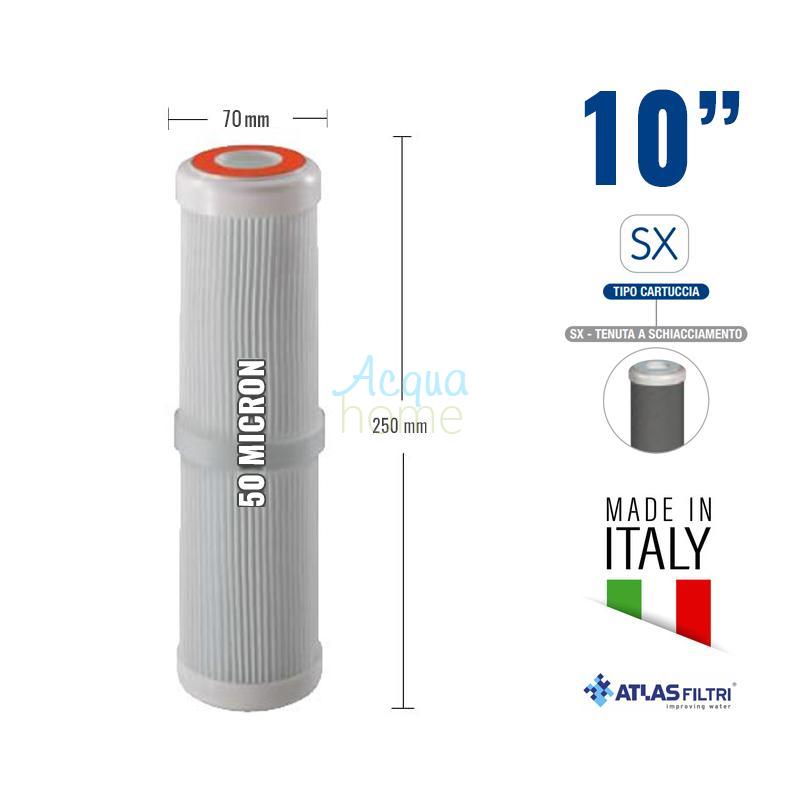

Dimensions L x H: 61 x 250 mm x connection: 30 mm

TS SX (DOE) FILTER CARTRIDGES ARE MADE WITH PLEATED POLYESTER FABRIC, WHICH ENSURES A LARGE FILTERING SURFACE AREA AND A FILTRATION DEGREE OF 50 MICRONS.
They are used to remove sand, rust, and other suspended sediments for all residential, commercial, and industrial applications.
They are characterized by longer life and low pressure drop.

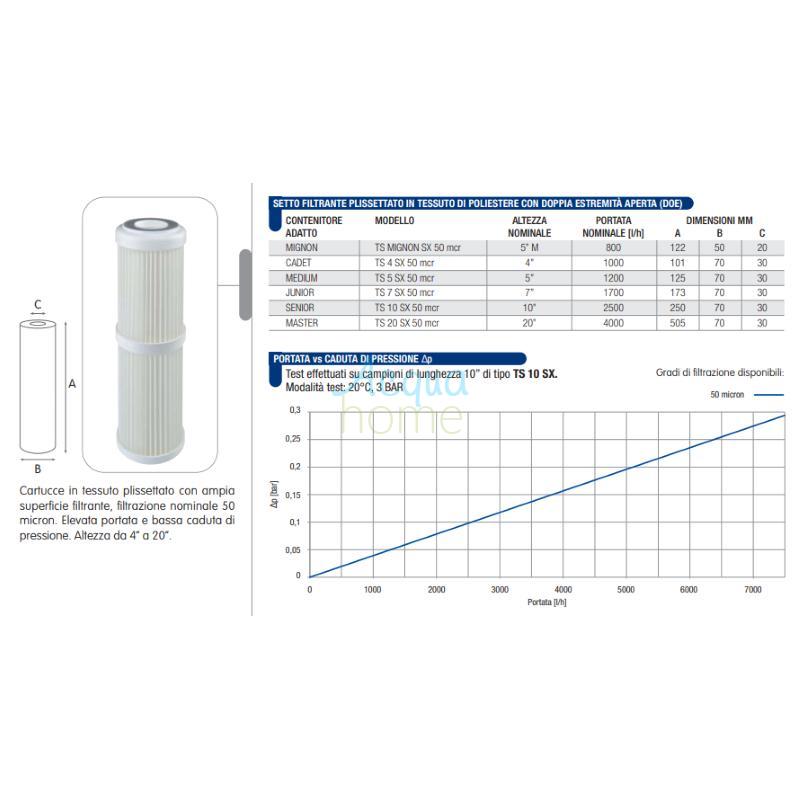

Pleated filter cartridges are available in different models and configurations, with heights ranging from 4" to 20". Recommended flow rates up to 4000 L/h.

These Cartridges are suitable for many industrial applications thanks to their broad chemical-physical compatibility and use with water or other liquids in the chemical, petrochemical, photographic, electroplating and pharmaceutical fields.

Technical Features:
- Size: 10"
- Filtration: 50 microns
- Depth filter cartridges for sediment removal
- SX double open end (DOE) with SEBS antimicrobial flat gaskets
- Can be installed on SX containers, DP containers, DEPURAL, DEPURAL TOP, BRAVO DP, and OASIS DP (SENIOR size)
- Filter media: polyester fabric
- Maximum operating temperature: 45°C (113°F)
- Minimum operating temperature: 4°C (39.2°F)
- Average life: 24 months
- Maintenance: wash every 3 months
- Intended for drinking water. Do not use with microbiologically impure water or water of unknown quality.

Advantages:
- Non-toxic materials, suitable for drinking water
- Various models and configurations
- Maximum compatibility with aqueous solutions for various applications
- The gasket combats the problem of Bacterial proliferation
- Long-lasting and efficient over time
- Safety of a standard product certified by stringent international standards

TS SX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining EAC/Ghostreghistrazia (Russia), ACS (France), and WaterMark (Australia) health certification.
