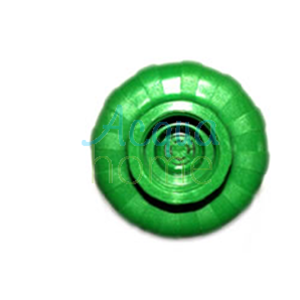

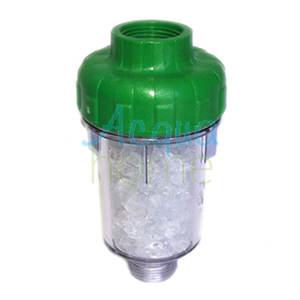

DOSAL PLUS DISPENSER FOR WASHING MACHINES

Dosal Plus Dispenser for Washing Machines - Non-Proportional Crystal Polyphosphate

APPLICATIONS
Home use only: Anti-limescale and anti-corrosion protection for washing machines and dishwashers.
Reduces detergent use; replaces expensive descaling products added to every wash; easy to install.
Maintenance: Replace the polyphosphate charge approximately every 6 months.
Warning: Use a pre-filter to protect the dispenser.

OPERATING CONDITIONS
Maximum pressure ___________________7 BAR
Maximum temperature ___________________35°C
Maximum water hardness ____________50°F (500 ppm CaCO3)
Warning: Treated water can be heated up to 75°-80°C; above
this temperature, the polyphosphate gradually loses its effectiveness.

FEATURES
Non-toxic materials.
Head: Reinforced polypropylene.
Glass: SAN.
Grids: Polypropylene.
O-rings: ETP.
Gaskets: PVC.

Technical characteristics:
IN/OUT connections: 3/4"
Height: 130 mm
Diameter: 68 mm
Optimum flow rate: 1000 l/h
Polyphosphate fill: 150 g
Maximum operating pressure: 7 bar
Maximum temperature: 35°C
Maximum water hardness: 50°F (500 ppm CaCO3)
Spare parts:

Sodium polyphosphate crystals 6/10, replace approximately every 6 months
Treatment material: sodium polyphosphate crystals.
Warning: Maximum storage time: 12 months.
