DOSAPLUS 14 - PROPORTIONAL POLYPHOSPHATE POWDER DISPENSER 1/2" CONNECTOR - ATLAS FILTRI ANTI-LIMESCALE SYSTEM

DOSAPLUS 14 PROPORTIONAL DISPENSER FOR POLYPHOSPHATES IN POWDER ATT. 1/2" - ATLAS FILTRI
Item Code: RE4050314

ATLAS DOSAPLUS 14 - READY-TO-USE PROPORTIONAL POLYPHOSPHATE POWDER DISPENSER FOR DRINKING WATER COMPLIANT WITH MINISTERIAL DECREE 25.

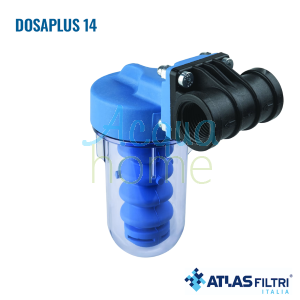

Dosaplus 14 is a ready-to-use proportional polyphosphate powder dispenser for the anti-scale and anti-corrosion treatment of neutral pH water and drinking water for domestic and industrial installations.

Through the automatic and proportional dosing of the ready-to-use Poliphos A anti-scale and anti-corrosion product, Dosaplus proportional dispensers release polyphosphates that prevent the deposits of calcium and magnesium carbonate, forming a protective film around them to prevent scale buildup.

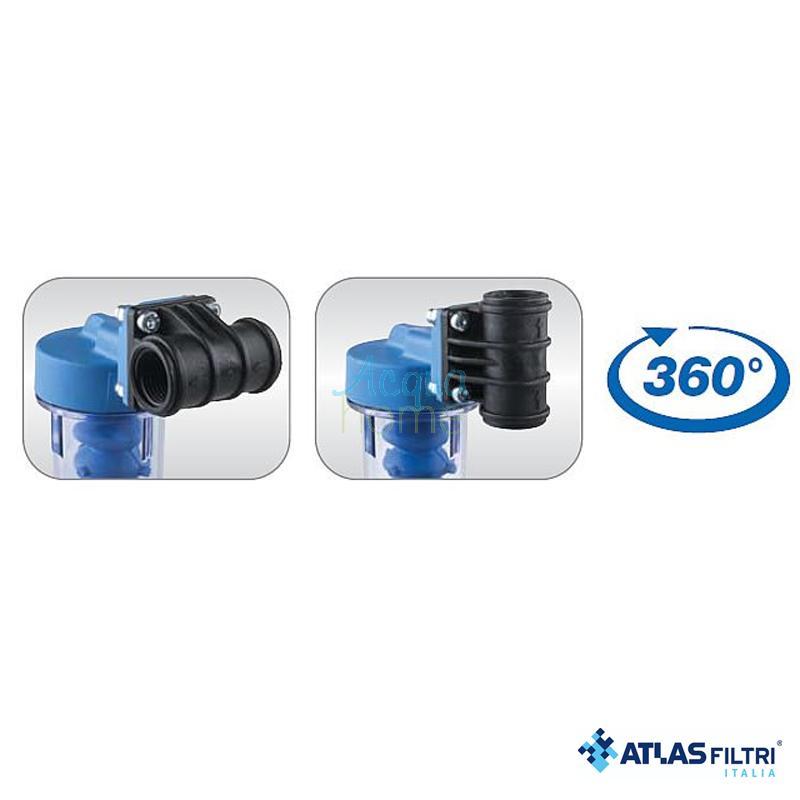

Used for "point-of-use" use, with a plastic head and a 360° rotational connection in female plastic for Easy connection to horizontal or vertical pipes; consists of two parts (head, socket).

Polyphosphate treatment is an effective and economical solution to the problem of limescale buildup and avoids unnecessary maintenance and repair costs. Over time, limescale buildup can clog pipes, reducing the internal cross-section and flow rate, causing malfunctions in appliances, reduced energy efficiency, and high maintenance, operation, and repair costs.

Polyphosphate dissolves in water, preventing limescale buildup by preventing calcium and magnesium crystallization. Over time, even existing deposits are broken down. Furthermore, polyphosphate dissolved in water also acts as an effective corrosion protection agent by forming a protective film on the internal surface of pipes, coils, etc.

Dosaplus 14 is a proportional dosing device compliant with Italian Ministerial Decree 25 and European regulations, manufactured in Italy with top-quality materials.

Technical Specifications:
- Non-toxic materials, suitable for drinking water
- Head: Reinforced polypropylene
- Bowl: SAN
- O-ring: EPDM
- Vent valve: Stainless steel body, EPDM O-ring
- Bellows: Natural rubber (NBR)
- IN/OUT connections: Reinforced polypropylene
- Maximum operating pressure: 8 bar
- Maximum operating temperature: 45° C
- Maximum water hardness: 35° F (350 ppm CaCO3)
- IN/OUT connections: 1/2"
- A: 150 mm B: 65 mm C: 126 mm D: 145 mm

Uses and applications:
- Domestic use to protect pipes, boilers, and other drinking water installations
- Technical use to protect pipes, fittings, boilers, and water heating systems

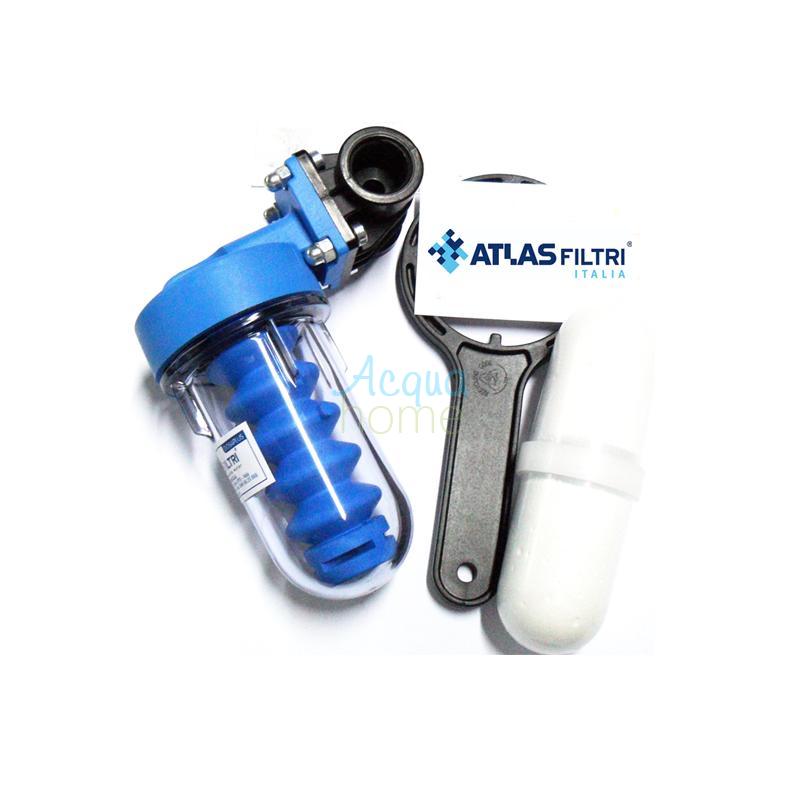

Package includes:
- Dosaplus 14
- Wrench
- 2 Poliphos A refills
- Use and maintenance manual in Italian

Refills:
- Ready-to-use Poliphos A in skin packs containing two refills or twelve refills

Warning
Treated water can be heated up to 75°C - 80°C; above this temperature, the polyphosphate gradually loses its effectiveness.
