DOSAPLUS 33 - NEW PROPORTIONAL POLYPHOSPHATE POWDER DISPENSER 1/2" CONNECTOR - VERSATILE AND COMPACT ANTI-LIMESCALE SYSTEM - ATLAS FILTRI

DOSAPLUS 14 NEW PROPORTIONAL DISPENSER FOR POLYPHOSPHATES IN POWDER ATT. 1/2" - ATLAS FILTRI
Item Code: RE4050216

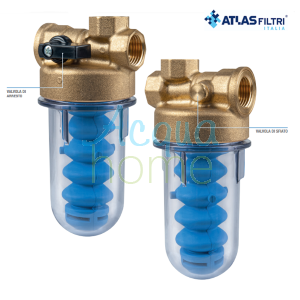

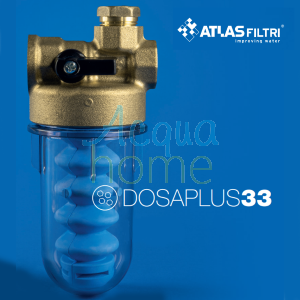

ATLAS DOSAPLUS 33 - COMPACT DISPENSER WITH 3-WAY BRASS HEAD

The new Dosaplus 33 polyphosphate dispenser was designed for maximum versatility during installation and to make maintenance as easy as possible. How is this achieved? With a special three-way head that allows for in-line and angled installation: simply close the unused connection with the supplied cap.

Dosaplus 33 is equipped with an inlet valve that blocks the flow of incoming water. Its female connections can be converted to male and swivel connections (using fitting kits sold separately).

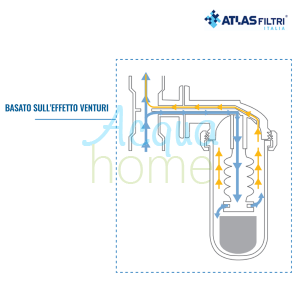

The new Atlas Filtri dispenser is equipped with a special suction device based on the Venturi effect to allow for proportional dosing of the polyphosphate.

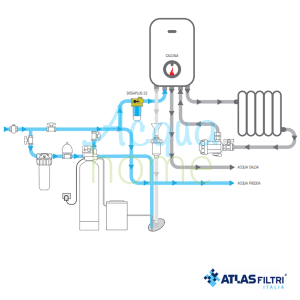

Dosaplus 33 must be installed at the point of use and is compatible With domestic boilers with a maximum power of 35 kW.
Dosaplus 33 uses the ready-to-use Poliphos A powder filler: quick and easy maintenance!

Main Features

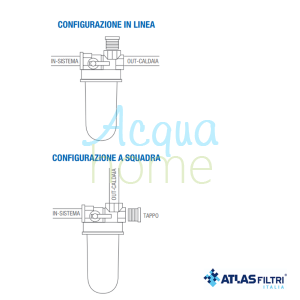

- Special three-way head that allows for both in-line and angled installation thanks to the included cap that closes the unused connection.
- Equipped with an inlet valve (stop valve) that blocks the flow of incoming water, thus simplifying maintenance.
- Possibility of converting female connections to male connections using nipples (not included).
- Possibility of converting female connections to swivel connections using swivel nuts (not included).

Technical Specifications:
- Non-toxic materials, suitable for drinking water.
- Head: CW 602 N brass.
- Bowl: SAN.
- O-ring: EPDM.
- Vent valve: CW 602 N brass body, EPDM O-ring.
- Bellows: natural rubber (NBR).
- IN/OUT connections: brass.
- Maximum operating pressure: 8 bar.
- Maximum operating temperature: 45° C.
- Maximum water hardness: 35° F. (350 ppm CaCO3)
- IN/OUT connections: 1/2"

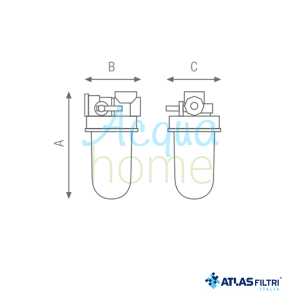

- Dimensions in mm (HxWxD): 145x68x60

Uses and applications:
- Domestic use to protect pipes, boilers, and other potable water installations
- Technical use to protect pipes, fittings, boilers, and water heating systems

Sales package includes:
- Dosaplus 33
- Tightening wrench
- 2 Poliphos A refills
- Use and maintenance manual in Italian

Refills:
- Ready-to-use Poliphos A in skin packs containing two refills or twelve refills

Warning
Treated water can be heated up to 75°C - 80°C; above this temperature, the polyphosphate gradually loses its effectiveness.
