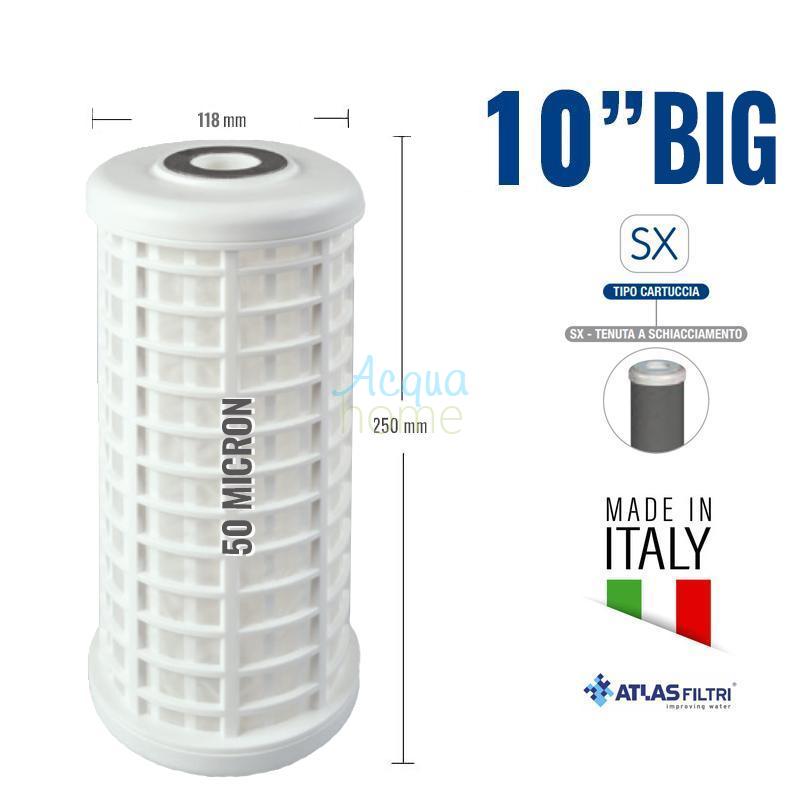

RL 10" BIG SX 50 MCR - WASHABLE NET CARTRIDGE | ATLAS FILTRI (10" BIG)

CARTRIDGE FILTER - RL BIG 10" SX 50 MCR - MADE IN ITALY
for DP BIG 10" container filter (ATLAS FILTRI)
Manufacturer code: RA5015514
Dimensions: L x H: 118 mm x 250 mm x connection: 27 mm

BIG washable filter cartridge with tubular polyester filter mesh. Filtration: 50 microns.
Washable cartridge made in Italy by ATLAS FILTRI for filtering drinking water. Washing the filter media can restore the cartridge to conditions comparable to those of a new one.

The BIG washable mesh cartridges with a 4.5" outer diameter and a nominal filtration of 50 microns provide uniform water flow and very low pressure drops.
The cartridges are manufactured without glue or sealants, and the mesh is molded onto a rigid structural support (reinforcement).
Rigid support cartridges designed for high strength and durability.
RL BIG cartridges are available in 10" and 20" heights.

OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average lifespan: up to 24 months

TECHNICAL SPECIFICATIONS
Non-toxic materials, suitable for drinking water.
Filter media: polyester mesh.
Frame and plates: polypropylene.
Seals: SEBS with antimicrobial protection

- Filtration: 50 microns
- Nominal height: 10" (approximately 25.0 cm)
- Nominal flow rate: 3000 L/h
- Dimensions (HxWxD): 250x118x27 mm
- Suitable housing: DP BIG 10" Atlas Filtri
- SX crushing cartridge

CERTIFICATIONS
RL BIG SX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the most stringent global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
