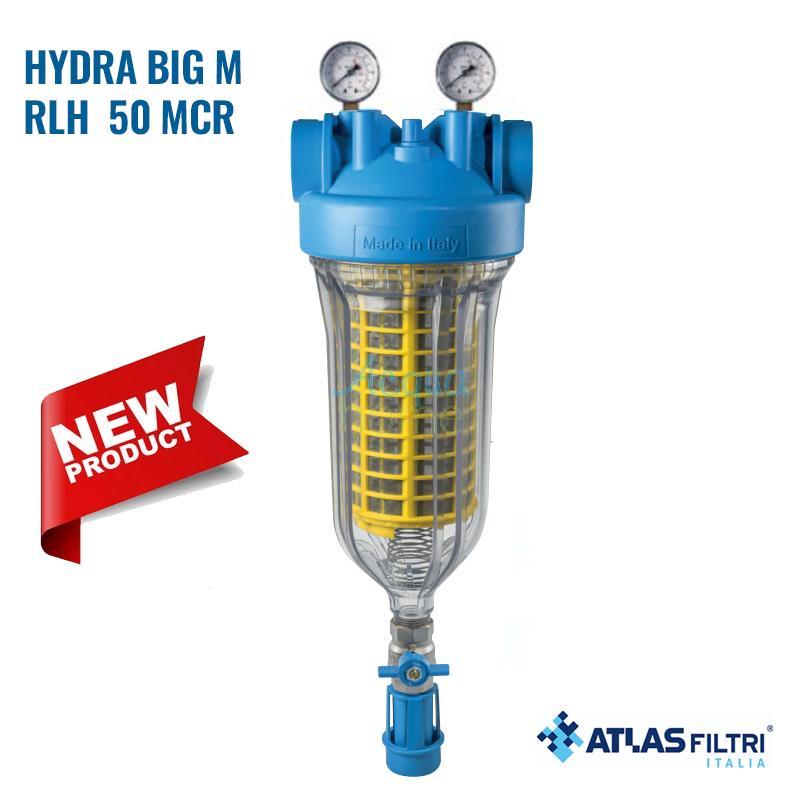

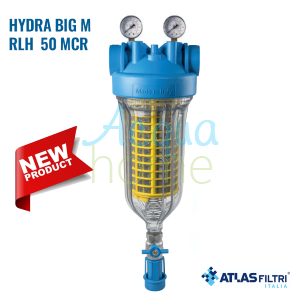

HYDRA BIG FILTER M 1"1/2 BSPP - RLH 50 MCR - MANUAL SELF-CLEANING WITH 2 PRESSURE GAUGES - ATLAS FILTRI

HYDRA BIG FILTER M 1" 1/2 BSPP - RLH 50 MCR - MANUAL SELF-CLEANING WITH 2 PRESSURE GAUGES - ATLAS FILTRI
Item Code: RA6310303

THE HYDRA BIG SELF-CLEANING FILTER WITH COUNTER-CURRENT FLUSHING SYSTEM ENSURES MAXIMUM SYSTEM PROTECTION THANKS TO ITS HIGH PERFORMANCE.
Cleaning operations are performed manually by opening the valve located at the bottom of the filter: in just a few seconds, the reversal of the water flow expels all the impurities deposited on the surface of the cartridge, restoring the filter to its initial condition.
The effectiveness of the self-cleaning process is guaranteed by the special anti-backflow device that prevents water from flowing back into the filter.
HYDRA BIG is equipped with two special washable filter cartridges: RAH BIG (stainless steel mesh) and RLH BIG (stainless steel mesh). polyester), both available with 50 and 90 micron filtration ratings.
The maximum flow rate ranges from 6,000 l/h for the 1" models to 15,000 l/h for the 1.5" models (26 to 66 gpm).
1" and 1.5" versions are available with BSPP and NPT plastic connections, and 1" versions are available with BSPP and NPT lead-free brass connections.
Versions with two pressure gauges are available.

OPERATING CONDITIONS
Maximum operating pressure ______8 bar (116 psi)
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)

TECHNICAL SPECIFICATIONS
- Non-toxic materials, suitable for drinking water
- Model M with two radial pressure gauges
- Head: reinforced polypropylene
- Bowl: PET
- O-ring: silicone
- IN/OUT connections: 1" 1/2 in BSPP plastic
- Self-cleaning discharge ball valve in CW617N nickel-plated brass
- Equipped with backflow prevention device
- Discharge nipple: reinforced polypropylene
- Discharge funnel: reinforced polypropylene

FEATURES
- Filtration: 50 microns
- Cartridge type: RLH BIG mesh Plastic
- IN/OUT connections: 1" 1/2 BSPP
- Flow rate: 15,000 L/h
- Minimum flow rate for effective backwash with RLH cartridge: 2,000 L/h

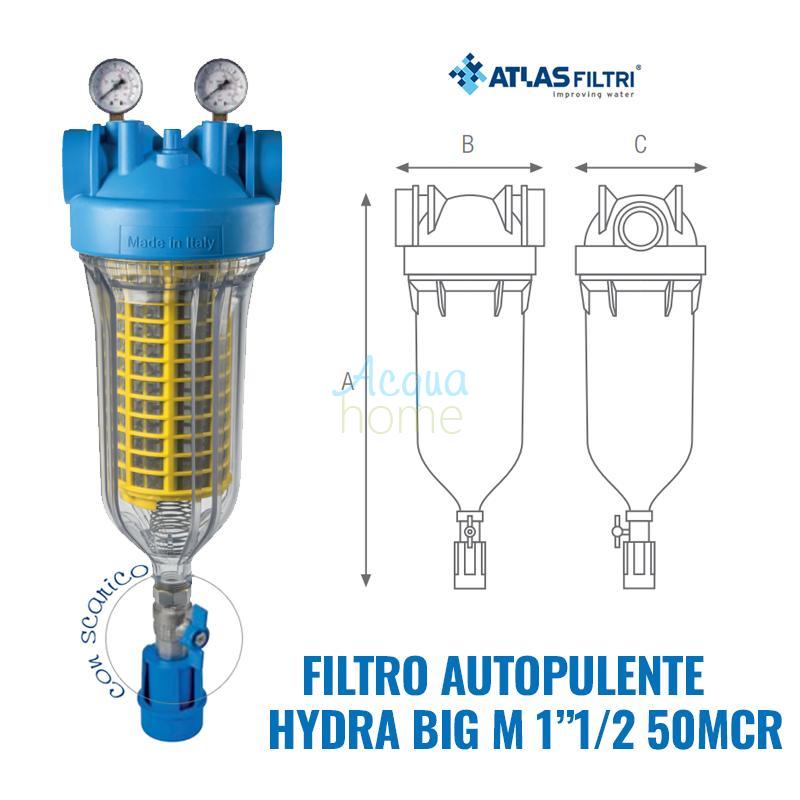

DIMENSIONS
- Height A: 570 mm
- Width B: 190 mm
- Thickness C: 185 mm

Self-Cleaning Filters with Backwash
The HYDRA BIG self-cleaning filter combines strength, reliability, and elegance with a pure Italian style, offering top-notch performance and excellent quality materials. All this ensures maximum protection for your system, even at very high flow rates.
Cleaning is quick and easy: simply open the valve at the bottom of the filter to reverse the water flow.
This way, all impurities are drawn in and expelled from the filter. The efficiency of this process is guaranteed by the drain system,
designed to block the backflow of expelled water.

Certifications
The HYDRA BIG self-cleaning filter series is certified by IAPMO R&T according to NFS/ANSI 42, 61, 372, and CSA B483.1 standards for material safety, structural integrity, and lead-free construction.
The products comply with Ministerial Decree 25 (Italy) and are tested and certified according to the strictest international standards, obtaining ACS (France) and EAC/Ghostreghistrazia (Russia) health certification.
