HYDROS 32 A - 20" MULTI-CARTRIDGE CONTAINER IN AISI 316 STAINLESS STEEL | ATLAS FILTRI

Hydros is a multi-cartridge container capable of handling medium and high flow rates.
It is available exclusively in AISI 316 stainless steel to prevent corrosion and facilitate cleaning. The internal sealing features are designed to accommodate filter elements in the most common configurations.

Hydros containers can accommodate any type of SX filter cartridge, from traditional wound-wire filter elements to the more recent melt-blown polypropylene microfiber products, or pleated cartridges with a high filtering surface area, either disposable or washable metal.
They are suitable for SX-type cartridges with heights of 20", 30", and 40" and have IN/OUT connections of 1.5" and 2" with BSP threads.
They are made with the finest materials, constantly researching innovative manufacturing technologies and undergoing continuous monitoring to ensure the highest product quality.

Hydros 32 A Technical Specifications:
- Housings for: 3 x 20" cartridge filters

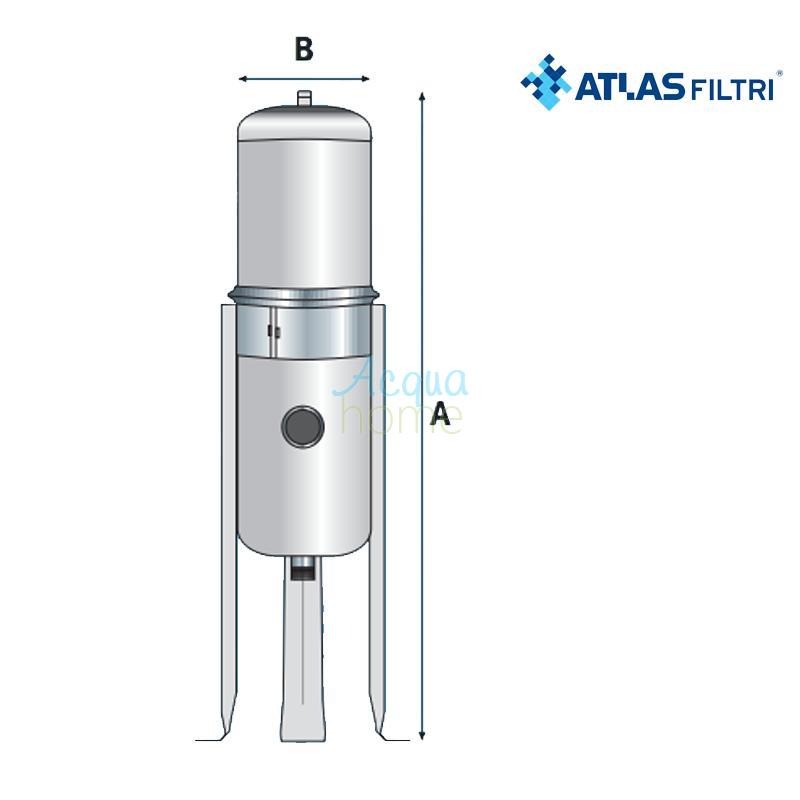

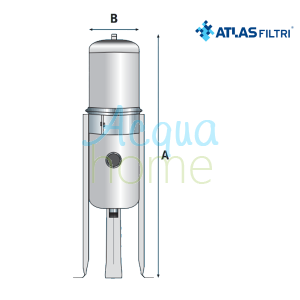

- Height (A) in mm: 1040
- Width (B) in mm: 180
- Non-toxic materials, suitable for drinking water
- Body and supports: AISI 316 stainless steel
- O-ring: NBR
- Closure: Zinc-plated steel clamp with screw
- Internal cartridge tensioner tie rod: AISI 316 stainless steel
- Crush plate: AISI 316 stainless steel
- Vent valve: AISI 316 stainless steel
- Male IN/OUT connections: 1 1/2"
- Thread: BSP
- Maximum operating pressure: 9 bar
- Maximum operating temperature: 80° C

Applications:
These containers are suitable for the filtration and treatment of water with neutral pH and drinking water, the protection of taps, boilers, washing machines, pre-filtration, microfiltration, protection of pumps, heating systems, water softening systems, dechlorination and demineralization systems.
