KIT 5 STADI FILTRI 20" CON STERILIZZATORE UV PER PUNTO D'USO - BAR, HOTEL, HORECA

5-STAGE 20" FILTER KIT WITH UV STERILIZER, BRACKET-MOUNTED, COMPLETE WITH PRESSURE GAUGES AND WRENCHES
WITH CARTRIDGE FILTERS INCLUDED IN THE SYSTEM

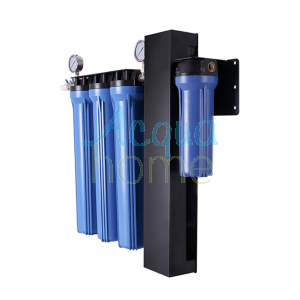

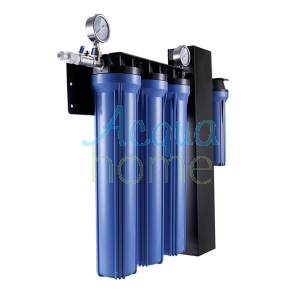

Filtration system mounted on a bracket complete with inlet and outlet pressure gauges, filter tightening wrenches, three 20" filter housings, a complete UV sterilizer, and a 10" filter housing.

The entire system is made with NSF and WRAS certified components.

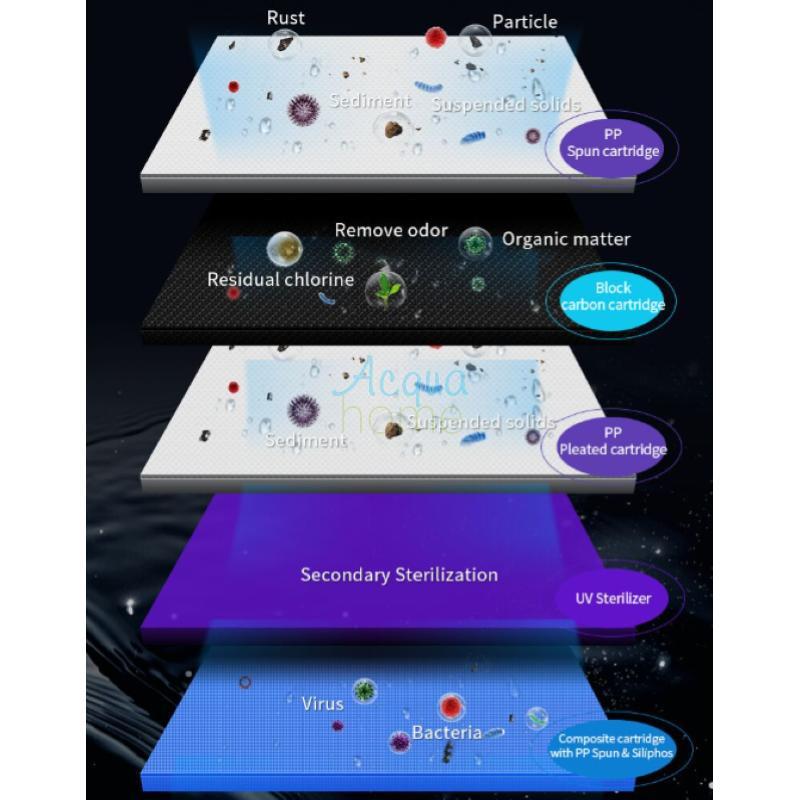

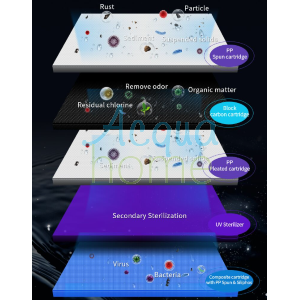

The 5-stage filtration system consists of:
- 1st stage: 20" PP 5-micron sediment
- 2nd stage: 20" CTO carbon block
- 3rd stage: 20" PL pleated 5-micron
- 4th stage: complete IN/OUT 1/2" UV sterilizer with 25W Philips lamp
- 5th stage: PP composite filter 5-micron sediment 5 microns + Polyphosphates (prevents scale and limescale buildup)

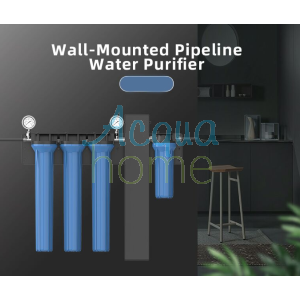

IDEAL for filtering entire water systems at home, as well as restaurants, kiosks, bars, and hotels, given its high performance.
The housings are compatible with a wide range of cartridge types available on the market.
Furthermore, pressure drop and filter wear can be monitored using the two pressure gauges located at the inlet and outlet of the system.
Bacterial protection is provided by a UV sterilizer and opaque containers that prevent sunlight from penetrating, ensuring a continuous supply of fresh, clean drinking water.

Technical Specifications:

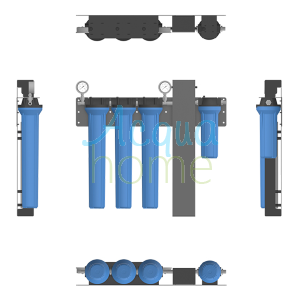

- Overall dimensions (height x width x length): 785 x 134 x 699 mm
- Weight: 22 kg
- Flow rate: 15 liters/minute
- Cartridge filters included: 1 x 20" PL pleated cartridge, 1 x 20" PP cloth cartridge, 1 x 20" CTO carbon block cartridge, 1 x 5-micron PP + polyphosphate composite cartridge
- Complete UV sterilizer with 25W Philips 2+2-pin G13 lamp
- Operating temperature range (water): 2 - 45°C (35 - 113°F)
- Operating pressure: 6 bar (90 psi)
- In/out connections: 1/2" BSP

Sterilizer technical specifications:
- Number of UV lamps: 1
- Inlet/Outlet: 1/2"
- Lamp: 25W PHILIPS 2+2pin G13
- Maximum flow rate: 15 L/minute
- UV-C lamp power, Watts: 25W UV-C
- Disinfection capacity: 6 gallons per minute
- Lamp replacement: Once a year
- Lamp connection: 2+2pin G13

Package contents:
- Filter tightening wrench
- 5-stage 20" kit + complete UV sterilizer mounted on a bracket
- ??Internal cartridge centering tool
- 2 pressure gauges for reading inlet and outlet pressure
- 2 1/8" x 1/4" reducers for mounting the pressure gauges
