RL 10" CX 50 MCR - WASHABLE NET CARTRIDGE | ATLAS FILTRI
| Price: | €15,30 Iva Inclusa |
|---|---|
| Item code: | RA5015314 |
| Brand: |  |
| Loghi-Marchi: |      |
| Availability: | Available Spedizione entro 24h |
| Quantity: |
Users feedback
Description

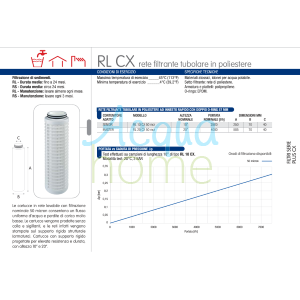

CARTRIDGE FILTER - RL 10" CX 50 MCR - MADE IN ITALY
for SENIOR CX and K DP container filters (ATLAS FILTRI)
Manufacturer code: RA5015314
Dimensions: L x H: 70 mm x 250 mm x connection: 40 mm
The RL CX (SOE-o-ring 226) washable filter cartridges with quick-fit, double 57 mm O-rings are equipped with a tubular polyester filter mesh suitable for sediment filtration.
They offer a high, uniform flow rate and very low pressure drops. They are produced by overmolding the rigid structural support onto the mesh.
Available in 10" and 20" heights, with a nominal filtration rate of 50 and a recommended flow rate of up to 4000 l/h, washable mesh cartridges ensure greater resistance and durability. Washing the filter media can restore conditions comparable to those of the cartridge. New.
OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months
Maintenance: Wash at least monthly
TECHNICAL SPECIFICATIONS
- Non-toxic materials, suitable for drinking water.
- Filter media: polyester mesh.
- Frame and plates: polypropylene.
- O-rings: EPDM.
- Filtration: 50 microns
- Nominal height: 10"
- Nominal flow rate: 2500 L/h
- Dimensions (HxWxD): 250x70x40 mm
- Suitable housing: Senior CX and K DP Atlas Filtri
- CX (SOE-o-ring 226) quick-fit with double 57 mm O-ring
CERTIFICATIONS
RL CX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the strictest global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
for SENIOR CX and K DP container filters (ATLAS FILTRI)
Manufacturer code: RA5015314
Dimensions: L x H: 70 mm x 250 mm x connection: 40 mm
The RL CX (SOE-o-ring 226) washable filter cartridges with quick-fit, double 57 mm O-rings are equipped with a tubular polyester filter mesh suitable for sediment filtration.
They offer a high, uniform flow rate and very low pressure drops. They are produced by overmolding the rigid structural support onto the mesh.
Available in 10" and 20" heights, with a nominal filtration rate of 50 and a recommended flow rate of up to 4000 l/h, washable mesh cartridges ensure greater resistance and durability. Washing the filter media can restore conditions comparable to those of the cartridge. New.
OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months
Maintenance: Wash at least monthly
TECHNICAL SPECIFICATIONS
- Non-toxic materials, suitable for drinking water.
- Filter media: polyester mesh.
- Frame and plates: polypropylene.
- O-rings: EPDM.
- Filtration: 50 microns
- Nominal height: 10"
- Nominal flow rate: 2500 L/h
- Dimensions (HxWxD): 250x70x40 mm
- Suitable housing: Senior CX and K DP Atlas Filtri
- CX (SOE-o-ring 226) quick-fit with double 57 mm O-ring
CERTIFICATIONS
RL CX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the strictest global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
Features
| Tipo attacco: | CX innesto |
|---|---|
| Portata d'esercizio: | 2500 L/h |
| Tipo bicchiere: | Filtro 10" - Senior |
| Tipo di filtro: | A sedimenti |
| Dimensioni: | 10" |
| Altezza: | 250 mm |
| Diametro interno: | 40 mm |
| Diametro esterno: | 70 mm |
| Filtrazione: | 50 micron |
| Portata nominale (L/h): | 2500 L/h |
| Durata media: | fino a 24 mesi |
| Temperatura di esercizio: | Massima temperatura di esercizio_____45°C (113°F) Minima temperatura di esercizio ______4°C (39,2°F) |
| Proprietà: | CARTUCCE FILTRANTI LAVABILI DOTATE DI RETE FILTRANTE TUBOLARE IN POLIESTERE PER FILTRARE FIOCCHI E SEDIMENTI OFFRENDO UN FLUSSO D'ACQUA UNIFORME E BASSE PERDITE DI CARICO. |
| Note: | Installabili su contenitori SENIOR CX e K DP |
| Applicazioni: | Utilizzate per rimuovere sabbia, ruggine e altri sedimenti in sospensione, per tutte le applicazioni in ambito residenziale, commerciale e industriale |
| Manutenzione: | Lavare ogni mese |
| Uso e destinazione: | Destinate all’ acqua potabile. Non usare in caso di acqua microbiologicamente impura o di qualità sconosciuta |
| Vantaggi: | - Materiali atossici, idonei per acqua potabile - Differenti modelli e configurazioni - Elevata portata e bassa caduta di pressione - Perfetta tenuta con doppio o-ring 57 mm - Maggiore durata e resistenza nel tempo |
| Certificazioni e omologazioni: | - Conformi al DM 25 (Italia) - EAC/Ghostreghistrazia (Russia) - WaterMark (Australia) |
| Imballo/pezzi: | 50 |
