RL 20" CX 50 MCR - WASHABLE NET CARTRIDGE | ATLAS FILTRI

CARTRIDGE FILTER - RL 20" CX 50 MCR - MADE IN ITALY
for SENIOR CX and K DP container filters (ATLAS FILTRI)
Manufacturer code: RA5017314

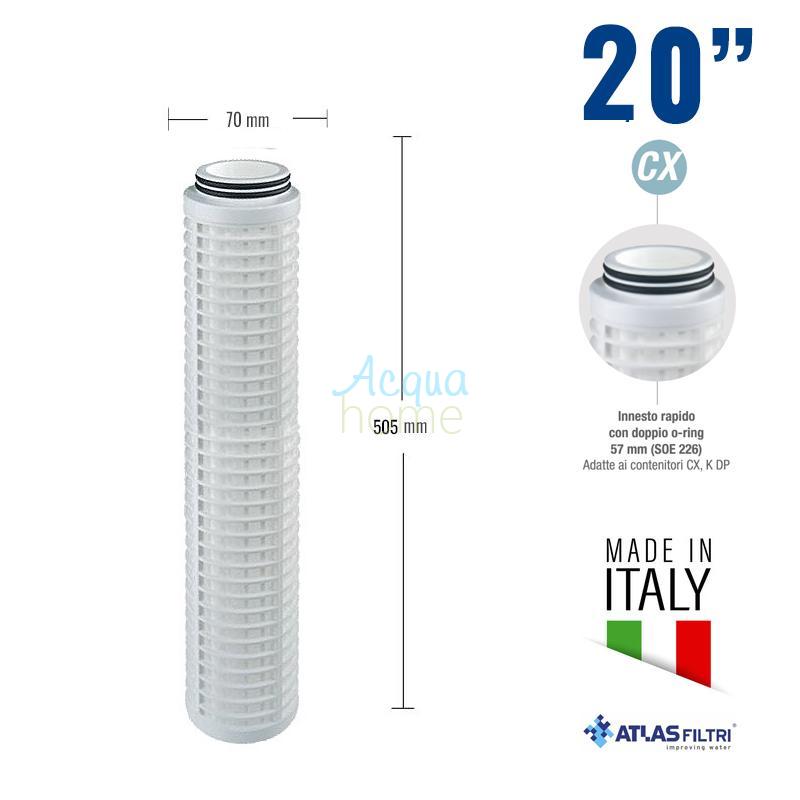

Dimensions: L x H: 70 mm x 505 mm x connection: 40 mm

The RL CX (SOE-o-ring 226) washable filter cartridges with quick-fit, double 57 mm O-rings are equipped with a tubular polyester filter mesh suitable for sediment filtration.
They offer a high, uniform flow rate and very low pressure drops. They are manufactured by overmolding the rigid structural support onto the mesh.
Available in 10" and 20" heights, with a nominal filtration rate of 50 and a recommended flow rate of up to 4000 l/h, the washable mesh cartridges ensure greater resistance and durability. Washing the filter media can restore conditions comparable to those of the cartridge. New.

OPERATING CONDITIONS
Maximum operating temperature _____45°C (113°F)
Minimum operating temperature ______4°C (39.2°F)
Average life: up to 24 months
Maintenance: Wash at least monthly

TECHNICAL SPECIFICATIONS
- Non-toxic materials, suitable for drinking water.
- Filter media: polyester mesh.
- Frame and plates: polypropylene.
- O-rings: EPDM.
- Filtration: 50 microns
- Nominal height: 20"
- Nominal flow rate: 4000 L/h
- Dimensions (HxWxD): 505x70x40 mm
- Suitable housing: Senior CX and K DP Atlas Filtri
- CX (SOE-o-ring 226) quick-fit with double 57 mm O-ring

CERTIFICATIONS
RL CX cartridges comply with Ministerial Decree 25 (Italy) and are tested and certified according to the strictest global standards, obtaining ACS (France), EAC/Ghostreghistrazia (Russia), and WaterMark (Australia) health certification.
