LASP4 SUCTION LANCE 40 CM ATT. 4X6 FOR PUMPS UP TO 10 L/H - EMEC

LASP4 SUCTION LANCE 63 CM ATT. 4X6 - FOR PUMPS UP TO 10 L/H - EMEC
Suction connection: 1/2" - for 4x6 hoses
Length 40 cm

The suction lance is a device for sucking chemical from the chemical storage tank.
It is available in various sizes depending on the tank.
The suction lance is made of PVC, with FKM B O-rings.
For EMEC tank model CNT PD 50.

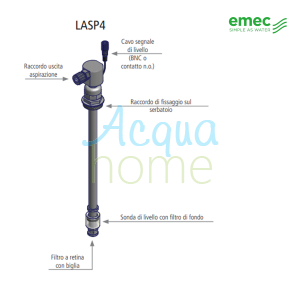

FEATURES
- Level probe for early warning signal when product is low. Also available with a double level probe.
- Suction valve and foot filter
- Adjustable height adjustment system
- 1 1/2" mounting connection
- Side outlet with 1/2" through valve
- Up to 2 suction outlets available

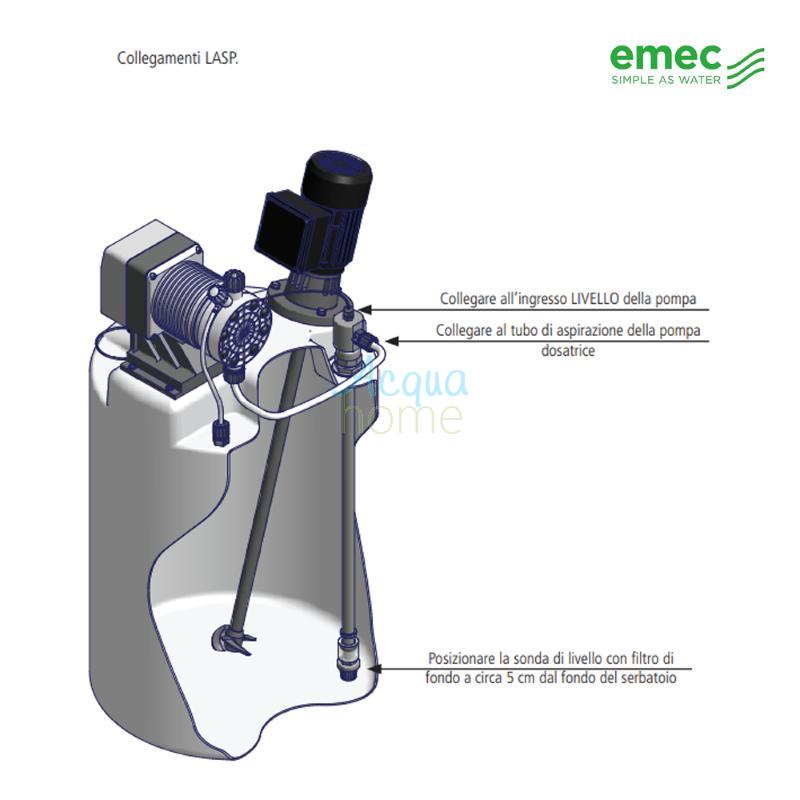

The LASP models 4 and 5 can be installed in two different ways depending on the container:
1) If the assembly If used on EMEC enclosures, remove the 1.5" collar and screw the LASP directly onto the enclosure.
2) If assembly is performed on different enclosures, perform the following steps:
a) Drill a Ø50 through hole in the enclosure.
b) Remove the 1.5" collar.
c) Insert the LASP into the drilled hole.
d) Screw the collar onto the LASP fitting.
