ATHENA AT-AM2 ANALOGUE PROPORTIONAL FLOW METERING PUMP PVDF FPM 100-240 VAC 5 L/H - 8 BAR - INJECTA

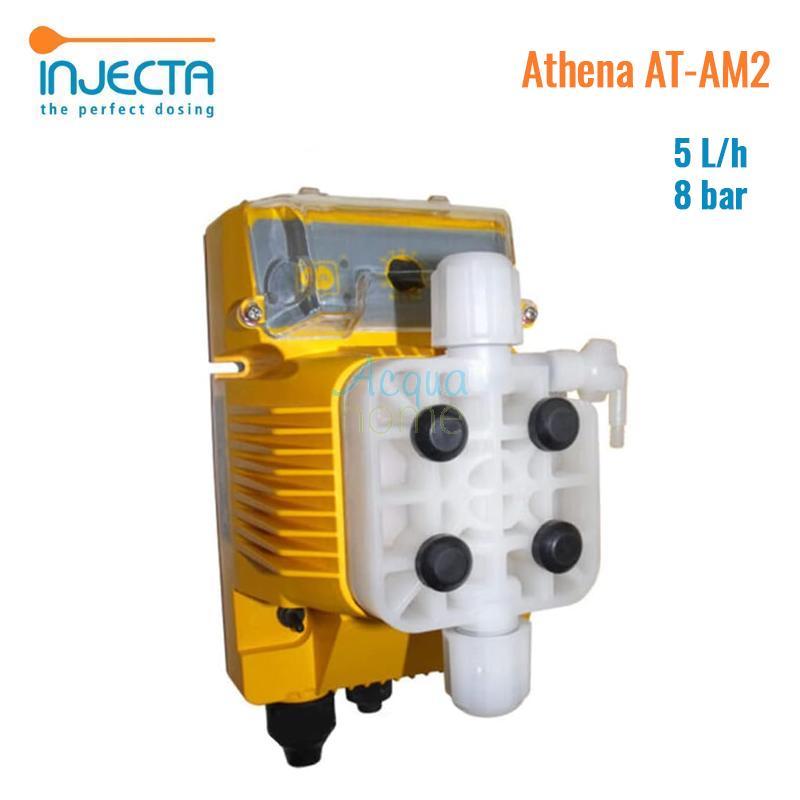

ATHENA AT-AM2 Electromagnetic Dosing Pump - INJECTA
Analog with Proportional Flow

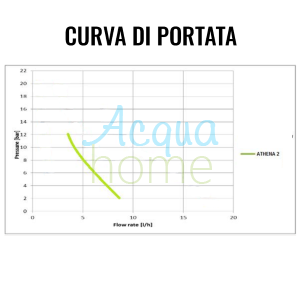

Flow rate 5 L/H - 8 BAR backpressure
**MADE IN ITALY**

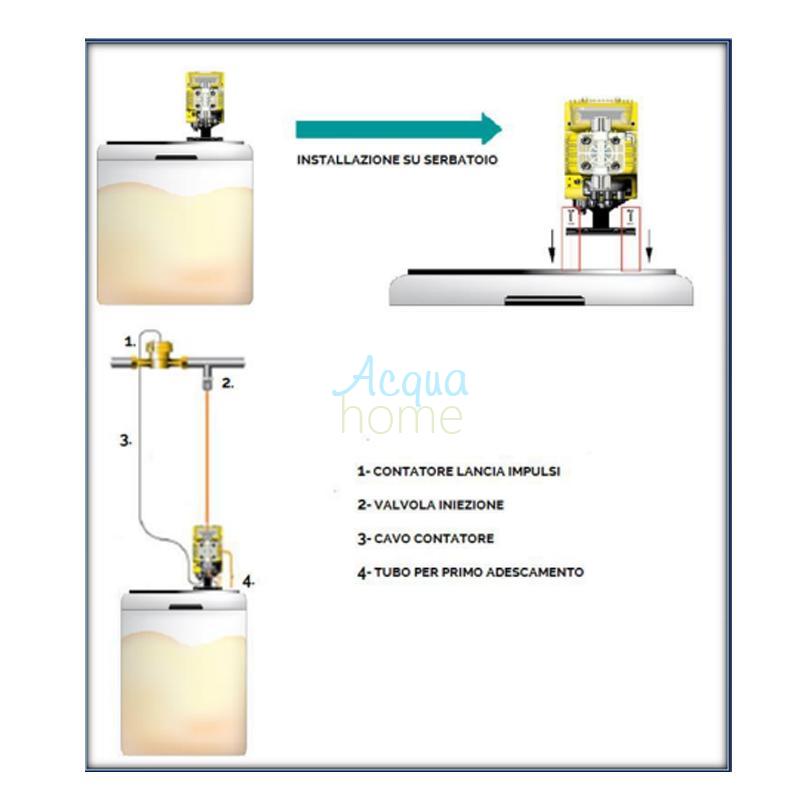

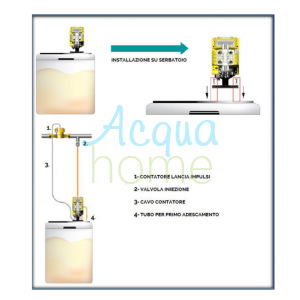

The chlorination pump is electromagnetic and analog, with manual and proportional regulation. It can be connected to a pulse meter, allowing for precise dosing, even when the water flow rate is inconsistent. To monitor the chlorine content inside the pump and prevent it from running empty, the product can be combined with a level probe that shuts off the chlorine dispenser when the product runs out. The pump must be connected to a tank or container containing chlorine.

Features
- PVDF PUMP BODY suitable for chemicals used in industrial applications, water treatment, and drinking water purification
- CERAMIC BALL: Reliable dosing and full chemical compatibility
- PTFE DIAPHRAGM: Resistance and compatibility with all chemicals
- 4x6 CONNECTIONS
- COLIPS/MIN. 160
- CONSUMPTION 20W
- WEIGHT 3 kg
- CONSTANT DOSING
- Stabilized multi-voltage power supply 100-240 Vac 50/60 Hz with low consumption
- QUICK CONNECTION
- MANUAL DRAIN VALVE
- IP65 PROTECTION

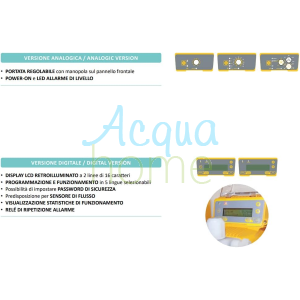

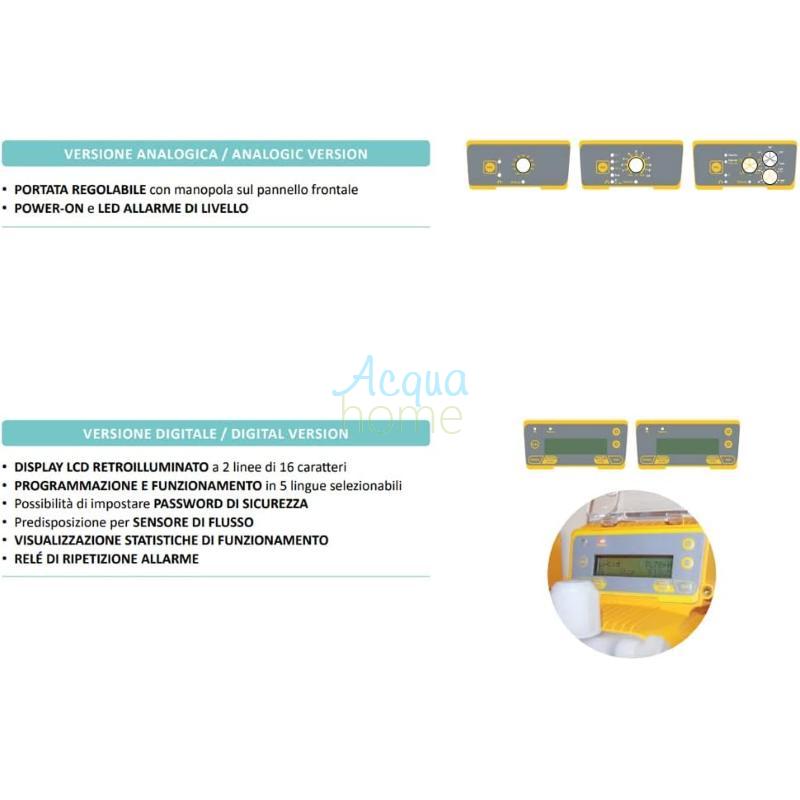

- ADJUSTABLE FLOW RATE via a knob on the front panel
- POWER-ON and LEVEL ALARM LED
- PROPORTIONAL FLOW ANALOG SIGNAL
- Ability to multiply or divide the pulses received from a pulse emitter
- Ability to adjust the maximum flow rate as a percentage using an analog signal (4-20 mA)
- Manual flow rate adjustment from 0-100%
- Level probe ready

MAIN APPLICATIONS:
- Electroplating industry treatments, pickling, degreasing, and general metal treatments
- Cooling tower
- Water Drinkable
- Reverse osmosis
- Paper industry
- Ceramics industry
