PUMP BODY W/BY-PASS 600 L/H BRASS ATT.1/2" FLUID

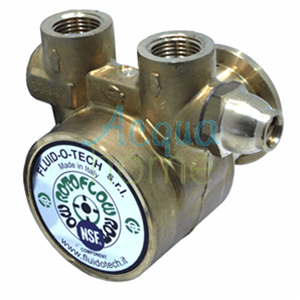

PA604 - Fluid o tech 600 L/h Brass Rotary Vane Pump WITH Bypass

These positive-displacement pumps are designed to pump water and moderately aggressive liquids with a low flow rate and high head.
The rotary vane pumps are made of brass with an AISI 303 rotor, while the pumping chamber and vanes are graphite.
The suction and discharge ports are 3/8" NPT/GAS.

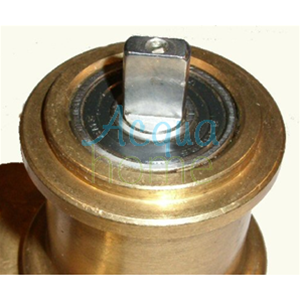

The pumps are designed to be mounted directly on the motor with a stainless steel clamp.
Various mounting options are available.
Maximum operating temperature: 70°C (158°F).

Main Applications
- Vending machines
- Post-mix
- Espresso machines
- Refrigeration systems
- Reverse osmosis
- Ultrafiltration
- Water dispensers
